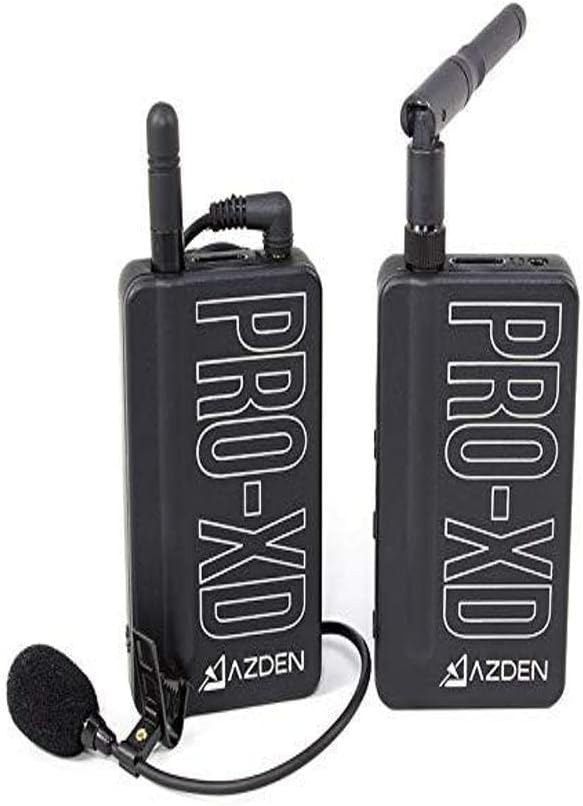

The Azden i-Coustics PRO-XD is an easy to use and affordable digital wireless lavalier microphone system for camera mounting and mobile video applications. Its compact and lightweight design is a great solution for capturing audio on the go. Perfect for video production, electronic news gathering and even mobile devices, the PRO-XD includes an adapter cable for compatibility with headset inputs on most modern smartphones and tablets! Utilizing digital wireless technology, the PRO-XD operates in the 2.4GHz range which is completely free of TV and radio interference. The PRO-XD out performs similarly priced VHF systems with better than CD quality digital audio and delivers dependable operation out to a distance of 100 feet or beyond with direct line of sight. Set up is a breeze with automatic syncing between receiver and transmitter. Internal, rechargeable lithium-ion batteries provide long lasting operation and easy charging via USB.
Designed to delivery high-fidelity audio, the receiver's high gain output with volume control alleviates noise and hiss produced by low-quality camera preamps and eliminates the need for big adjustments in post production. The PRO-XD's transmitter uniquely includes an auxiliary line input, allowing you to wirelessly transmit any stereo, line level audio source and mix it with the microphone source if desired. With its incredibly small form factor, the PRO-XD is the first viable digital wireless audio solution for use with action cameras, such as the popular Hero series from GoPro (3rd party cable may be required for connection). The complete PRO-XD system includes the transmitter, receiver and specially designed lapel microphone as well as an adapter cable for mobile devices, an audio output cable, USB cable and AC adapter for charging.
Specifications
System: Operating Frequency2.4GHz ISM BandSystem: Dynamic Range90dBSystem: Signal-To-Noise80dBSystem: Operating Range35m typical, up to 120m in ideal conditionsSystem: Frequency Response20Hz to 20kHz, +/- 1dBSystem: Digital Sampling48kHz / 16bitSystem: Latency14msSystem: Battery Life Span300 cyclesSystem: Battery TypeLithium-ionSystem: Power SupplyUSB 5VReceiver: RF Output Power10mWReceiver: Maximum Output Level-14dBVReceiver: Mic OutputDia. (3.5mm) dual-mono/stereoReceiver: Headphone OutputDia. (3.5mm) stereoReceiver: Output ImpedanceMic: 600Ohms
Headphone: 16OhmsReceiver: Battery Life16 hoursReceiver: Battery Charge Time3 hoursTransmitter: RF Output Power10mWTransmitter: Mic InputDia. 3.5mm mono TRRSTransmitter: Aux InputDia. (3.5mm) stereo, line levelTransmitter: Input ImpedanceMic: 2.2kOhms
Aux: 10kOhmsTransmitter: Maximum Input300mV RMSTransmitter: Battery Life11 hoursTransmitter: Battery Charge Time3 hours 30 minMicrophone: ElementElectret condenserMicrophone: Polar PatternOmnidirectionalMicrophone: Frequency Response30Hz to 20kHzMicrophone: Sensitivity-46dB at 1kHz (0dB=1V/Pa)Microphone: Impedance2.2kOhms (at 1kHz)Microphone: Power RequirementPlug-in power DC 1 to 10VMicrophone: Connector TypeDia. (3.5mm) TRRSMicrophone: Cord Length105cm / 41.34"Dimensions (W x H x D)Receiver: 1.89 x 3.11 x 0.55" / 48 x 79 x 14mm
Transmitter: 1.89 x 3.11 x 0.55" / 48 x 79 x 14mmWeightReceiver: 2.4oz / 68g
Transmitter: 2.19oz / 62g
