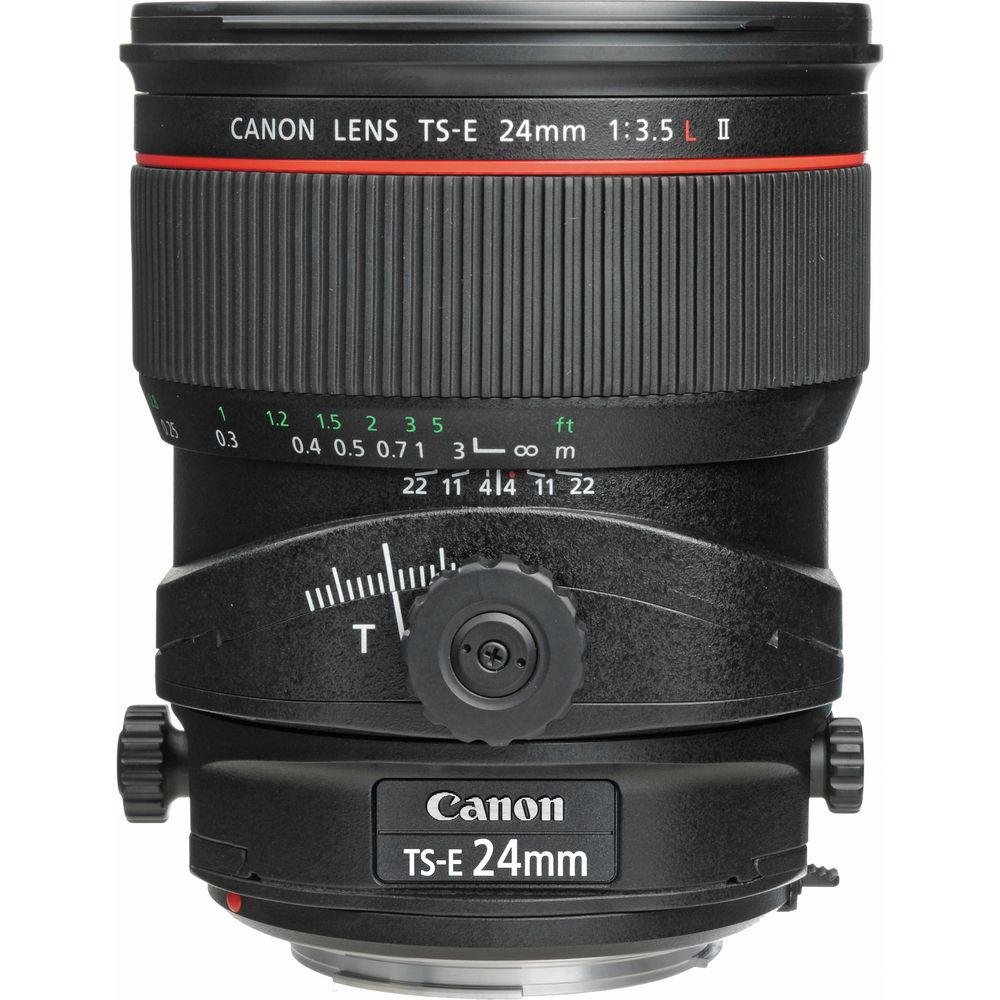

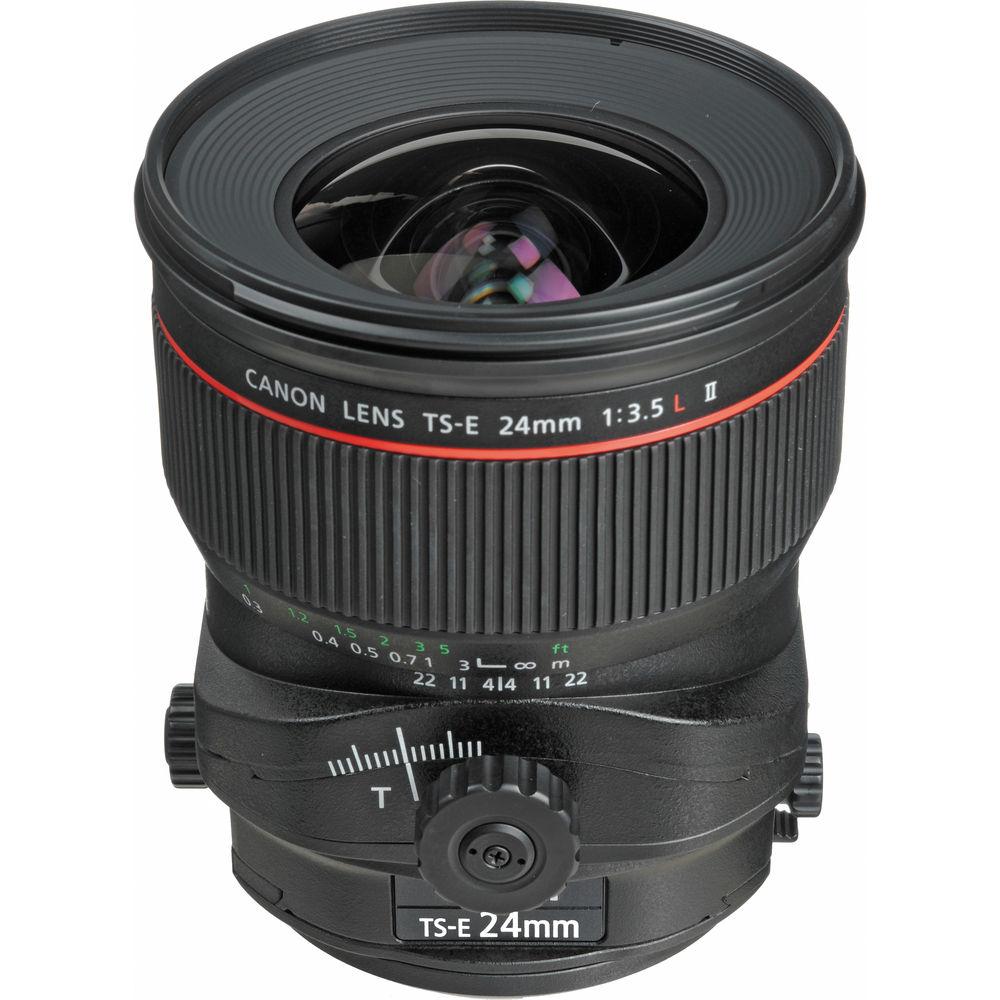

The Canon TS-E 24mm f/3.5L II offers enhanced functionality and image quality in its most popular tilt-shift focal length. Designed with UD glass to minimize and compensate for chromatic aberrations and specially coated aspherical elements for the highest possible glare-free image quality, this tilt-shift lens features an angle of view of 74°. New TS revolving lets users freely combine tilting and shifting within the range of +/- 90° in the direction of movement.
It has an enhanced range of movement of up to +/- 8.5°, a revolving construction for both portrait and landscape shooting modes, locking, ergonomically designed and easily operated tilt and shift knobs, uses a circular aperture for beautiful out-of-focus areas and is constructed using only lead-free glass and has an SWC lens coating that controls ghosting and flare to a far greater degree than earlier coating technologies.
Specifications:
| Focal Length & Maximum Aperture |
24mm 1:3.5 |
| Lens Construction |
16 elements in 11 groups |
| Diagonal Angle of View |
84° (without tilt or shift) Image circle diameter 58.6mm |
| Focus Adjustment |
Manual focus, overall linear extension system |
| Closest Focusing Distance |
0.69 ft./0.21m (maximum close-up magnification: 0.34x) |
| Filter Size |
82mm |
| Dimensions |
3.5" x 4.2" / 88.5 x 106.9mm |
| Weight |
27.5 oz./780g |
