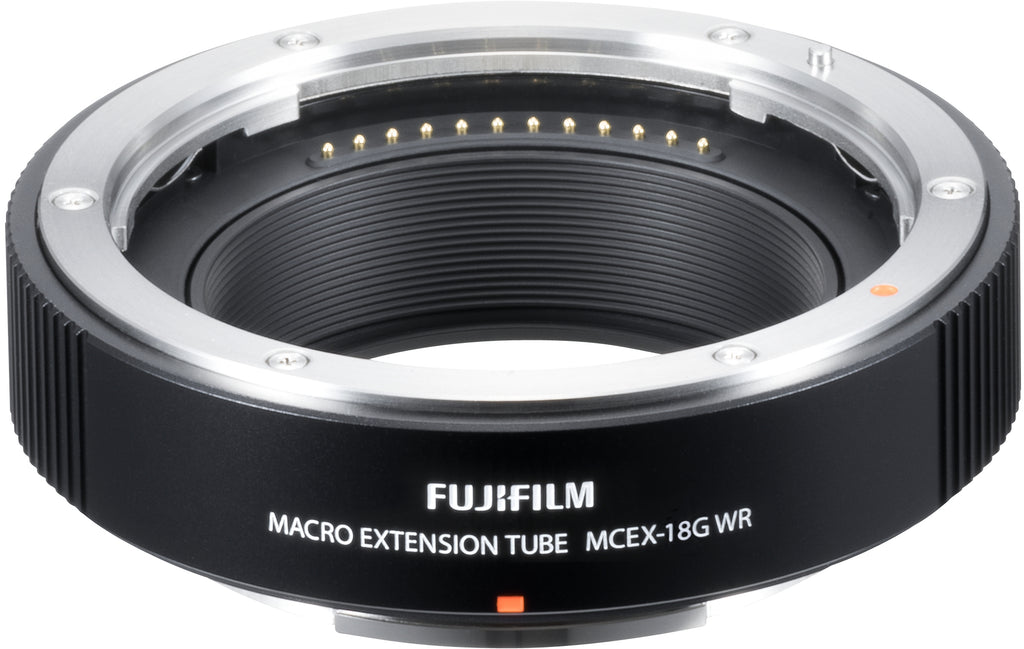

MCEX-18G WR and MCEX-45G WR expand the range of macro photography. Connecting the macro extension tubes to any GF lens allows macro photographs to be taken at a higher magnification ratio. Depending on the magnification ratio required, the photographer can select either the 18mm or 45mm tube. In particular, connecting the GF120mmF4 R LM OIS WR Macro (half-macro) and the MCEX-45G makes it possible to take photographs with life size 1:1 macro.
with GF23mmF4 R LM WR
- Maximum Magnification
- 0.85
- Working Distance
- 11mm
Distance from the top of the lens barrel to the subject
- Shortest Shooting Distance
- 160mm
Distance from the image sensor to the subject
with GF45mmF2.8 R WR
- Maximum Magnification
- 0.53
GF45mmF2.8 R WR
- Working Distance
- 85mm
Distance from the top of the lens barrel to the subject
- Shortest Shooting Distance
- 219mm
Distance from the image sensor to the subject
with GF63mmF2.8 R WR
- Maximum Magnification
- 0.46
GF63mmF2.8 R WR
- Working Distance
- 172mm
Distance from the top of the lens barrel to the subject
- Shortest Shooting Distance
- 288mm
Distance from the image sensor to the subject
with GF110mmF2 R LM WR
- Maximum Magnification
- 0.33
- Working Distance
- 411mm
Distance from the top of the lens barrel to the subject
- Shortest Shooting Distance
- 582mm
Distance from the image sensor to the subject
with GF120mmF4 R LM OIS WR Macro
- Maximum Magnification
- 0.71
- Working Distance
- 223mm
Distance from the top of the lens barrel to the subject
- Shortest Shooting Distance
- 422mm
Distance from the image sensor to the subject
with GF250mmF4 R LM OIS WR
- Maximum Magnification
- 0.31
- Working Distance
- 897mm
Distance from the top of the lens barrel to the subject
- Shortest Shooting Distance
- 1147mm
Distance from the image sensor to the subject
with GF32-64mmF4 R LM WR
- Maximum Magnification
- Wide: 0.66
Tele: 0.44
- Working Distance
- Wide: 27mm
Tele: 90mm
Distance from the top of the lens barrel to the subject
- Shortest Shooting Distance
- Wide: 189mm
Tele: 281mm
Distance from the image sensor to the subject
Dimensions and Weight
- Dimensions
- 3.22 x .70" / 82mm x 18mm
- Weight
- 6 oz / 170g
