Features:

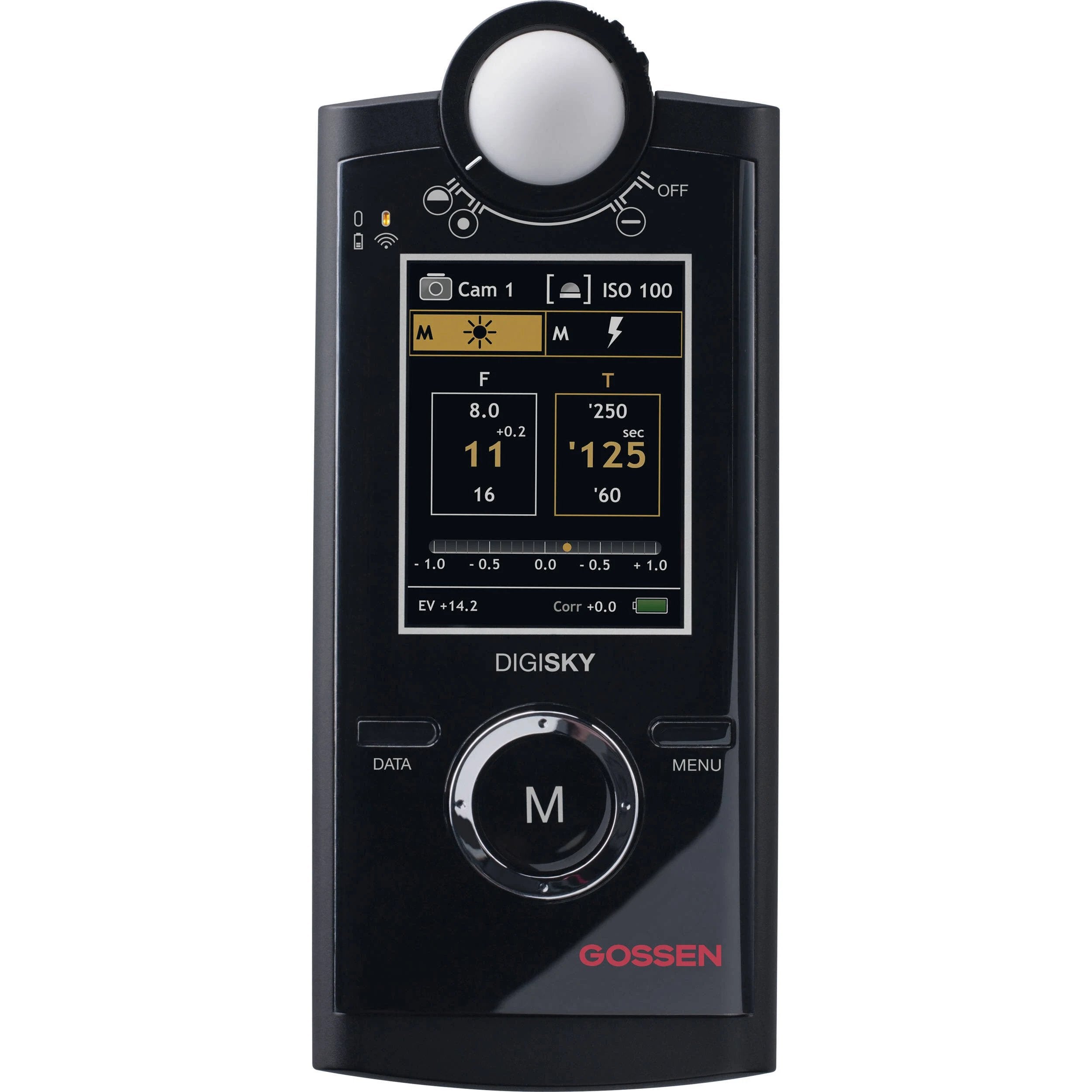

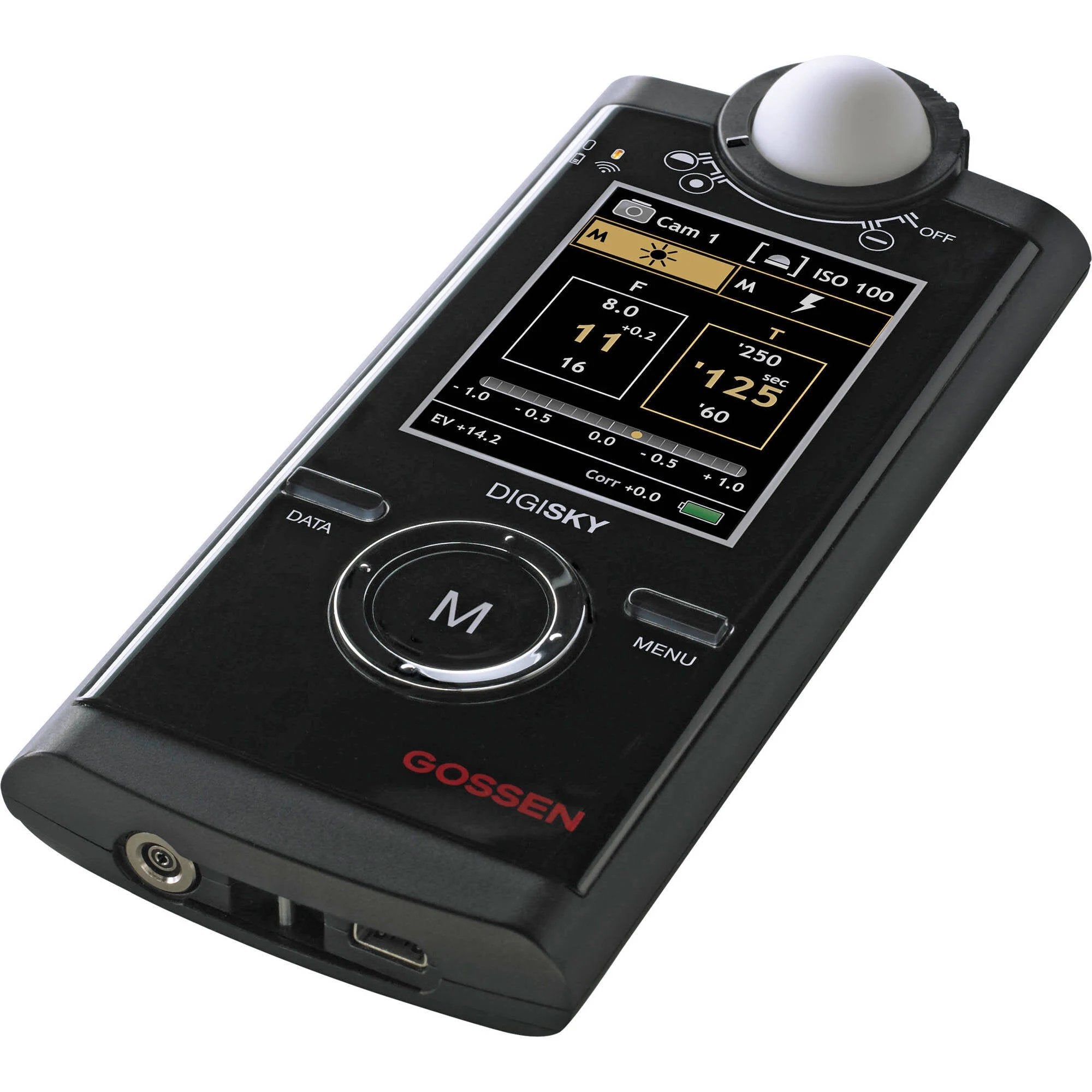

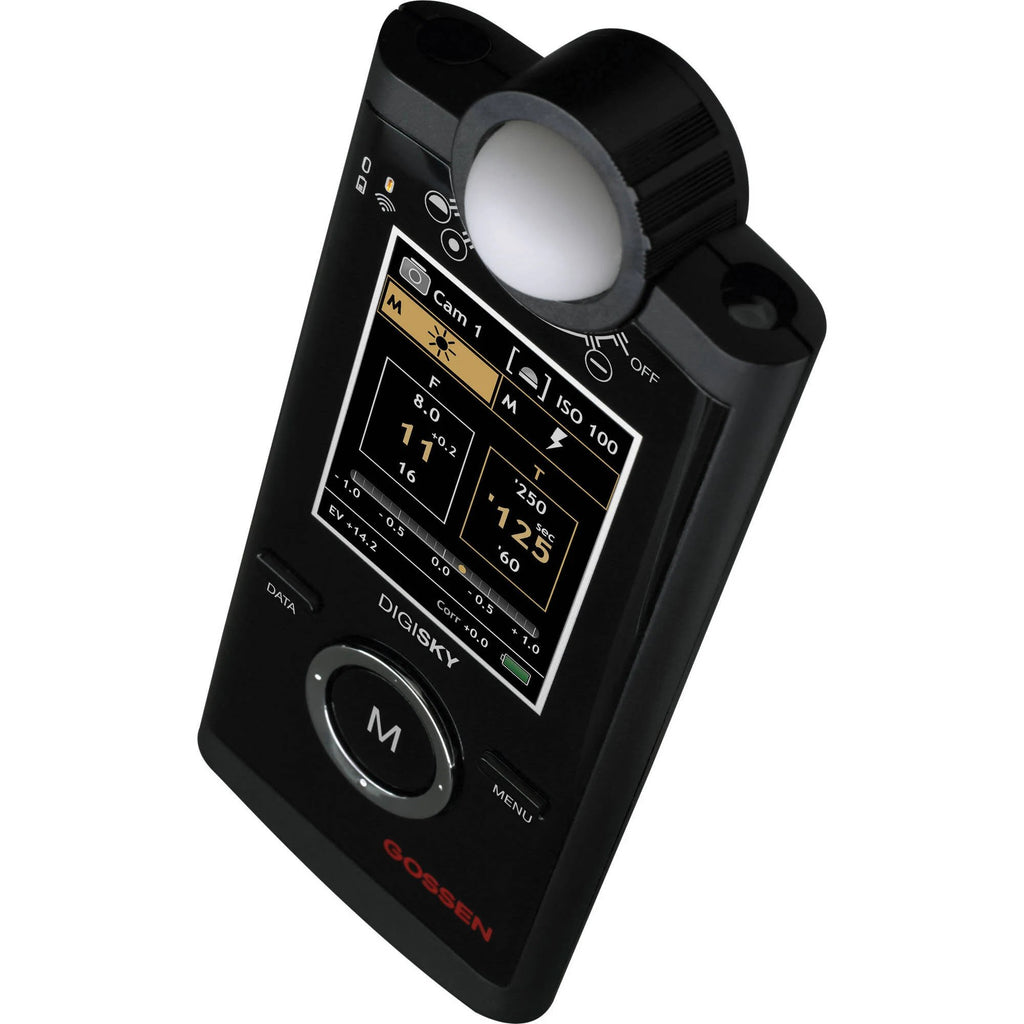

DIGISKY is the new handy and lightweight exposure meter in the GOSSEN range of products for flash light and ambient light. It is the big, well-arranged graphic display which permits a comfortable reading of the measured values. Designed for one-hand operating, the DIGISKY is equipped with a ring controller through which all functions may be selected very easily.
Even functions for special tasks may be set individually by means of three pre-settings, which may be chosen according to the photographers requirements. All measuring values may be indicated in full, ½ or 1/3 f-stops. The DIGISKY has a built-in remote radio trigger.

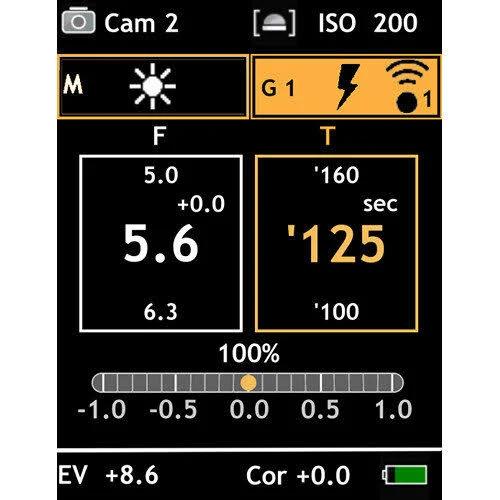

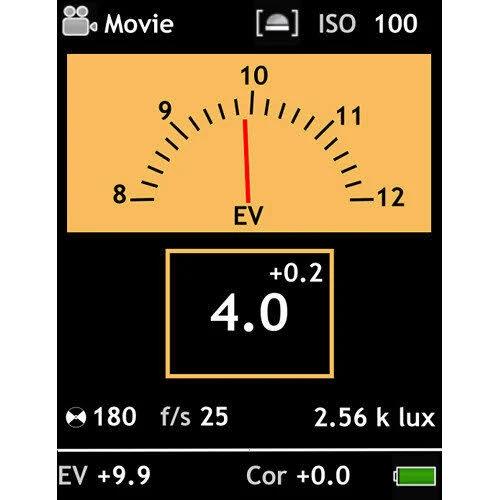

TFT-LCD Colour Graphic display
Even in dark ambience all measuring values may be read clearly. Well-arranged menu structure with every information at a glance.
Comfortable Triggering of your Studio Lighting
Up to 4 groups may be selected and triggered on 8 different radio frequencies.
Individual Configuration

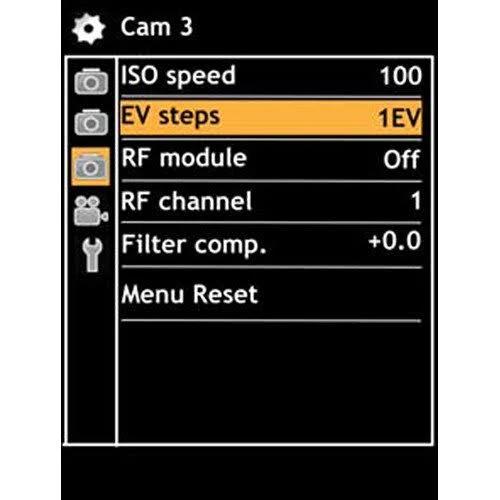

Up to three profiles may be programmed and selected.
Specifications:
| Light Sensor |
Two color-corrected sbc silicon photo diodes |
| Processing of Measuring Values |
Digital; repeat accuracy + 1 digit (=0.1EV) |
| Incident Light Reading |
Diffuser characteristics adjustable to flat or spherical (180deg.) |
| Reflected Light Reading |
Measuring angle 20deg. |
| Ambient Light (when ISO 100/21deg.) |
Incident Light Reading EV -2.5 to +18 |
| Flash Light (when ISO 100/21deg.) |
Incident Light Reading f/1.0 to f/90 |
| Film speeds |
From ISO 3/6deg. to 16000/43deg. in 1deg. DIN |
| Shutter speeds (standard values) |
1/8000s up to 60 min in 1/1 or 1/2 or 1/3 f-stops |
| Flash synch speeds |
1/1000 to 1 sec |
| Apertures ambient light |
f/1.0 to f/128 |
| Apertures flash light |
f/1.0 to f/90 |
| Correction values |
EV -9.9 to +9.9 |
| Radio module |
OFF, elinchrom SkyPort and Skyspeed, more manufacturers of flash lights to follow |
| Radio groups |
1 to 4 - ALL, A, B, C, D |
| Radio channels |
1 to 8 |
| Frequency channels |
Channel 1: 2456 MHz
Channel 2: 2458 MHz
Channel 3: 2460 MHz
Channel 4: 2462 MHz,
Channel 5: 2469 MHz
Channel 6: 2471 MHz
Channel 7: 2473 MHz
Channel 8: 2475 MHz |
| Power supply |
Meter-specific rechargeable Lithium-Ion-battery |
| Operating temperature range |
-10deg.C to +50deg.C |
| Storage temperature |
-20deg.C to +60deg.C |
| Dimensions |
With diffuser 24 mm: 139 x 60 x 16 mm / 5.47" x 2.36" x 0.62" |
| Weight |
Includes Rechargeable Battery: 100 g / 3.52 oz |
