Manfrotto 504X Fluid Video Head & MVTTWINMC Carbon Fiber Tripod with Mid-Level Spreader

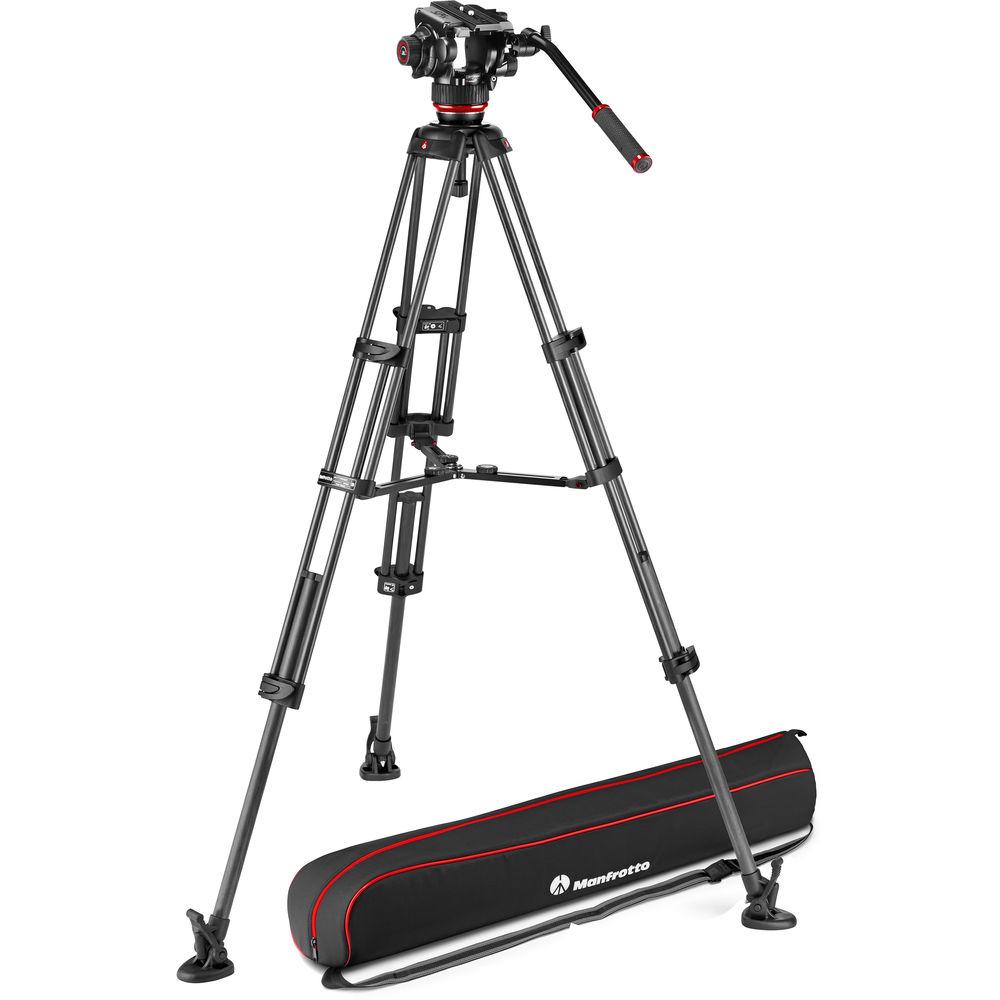

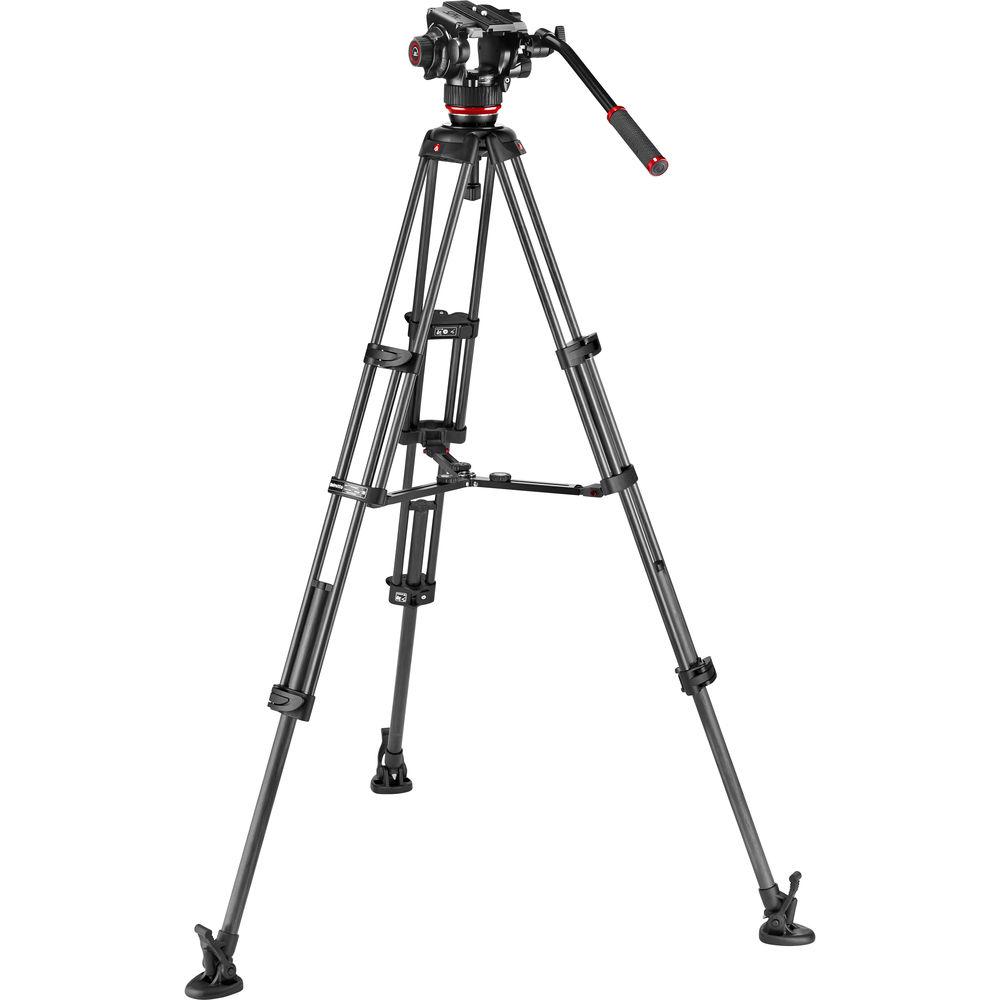

The Manfrotto 504X Flat-Base Fluid Video Head with Carbon Fiber Tripod with Mid-Level Spreader will support your camera equipment. The kit includes the MVTTWINMC carbon fiber tripod, the 504X fluid tripod head, a leveling ball to adjust the head to the tripod, and a carry case.

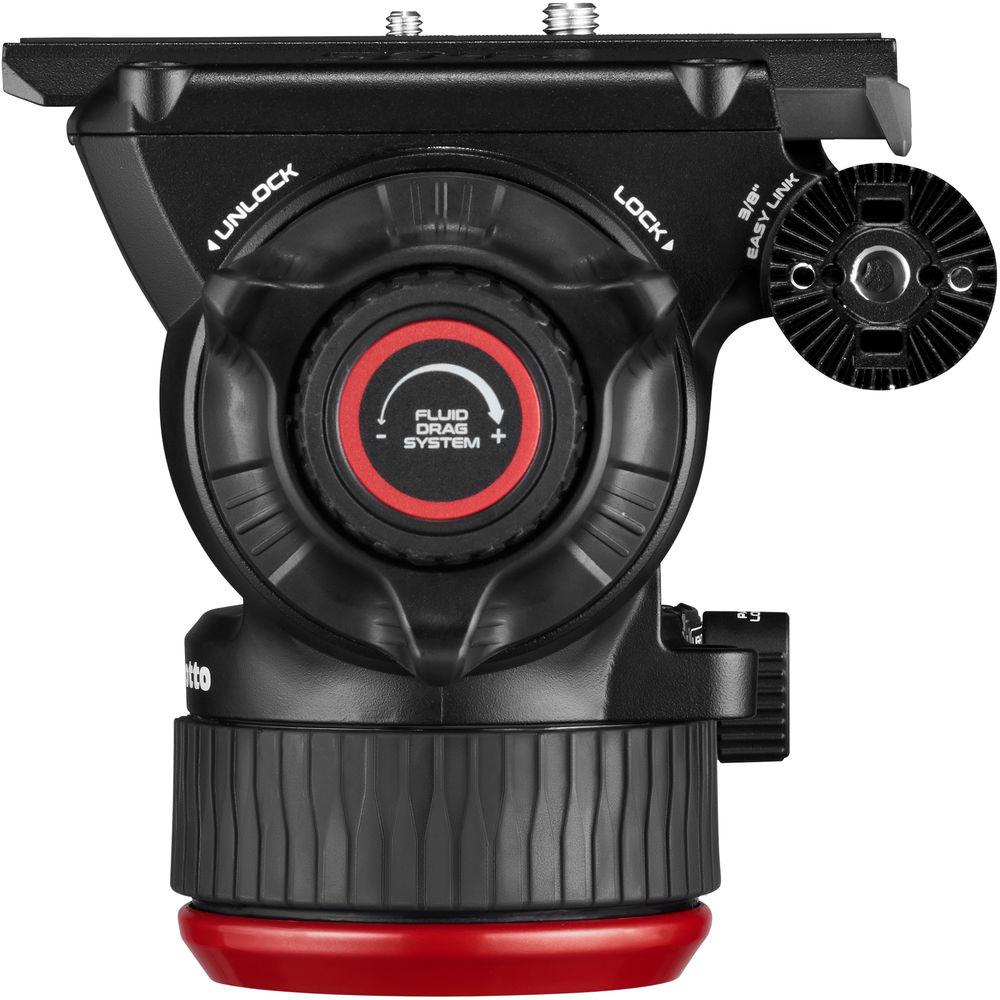

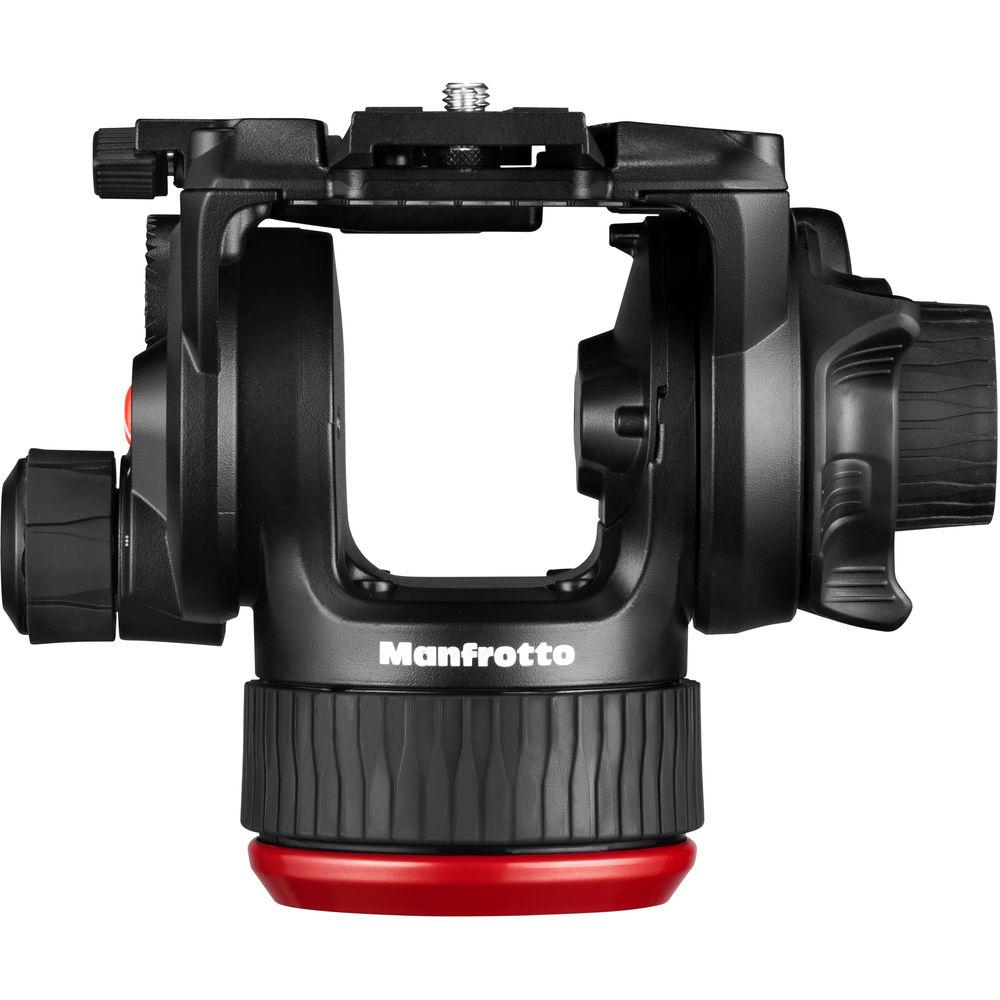

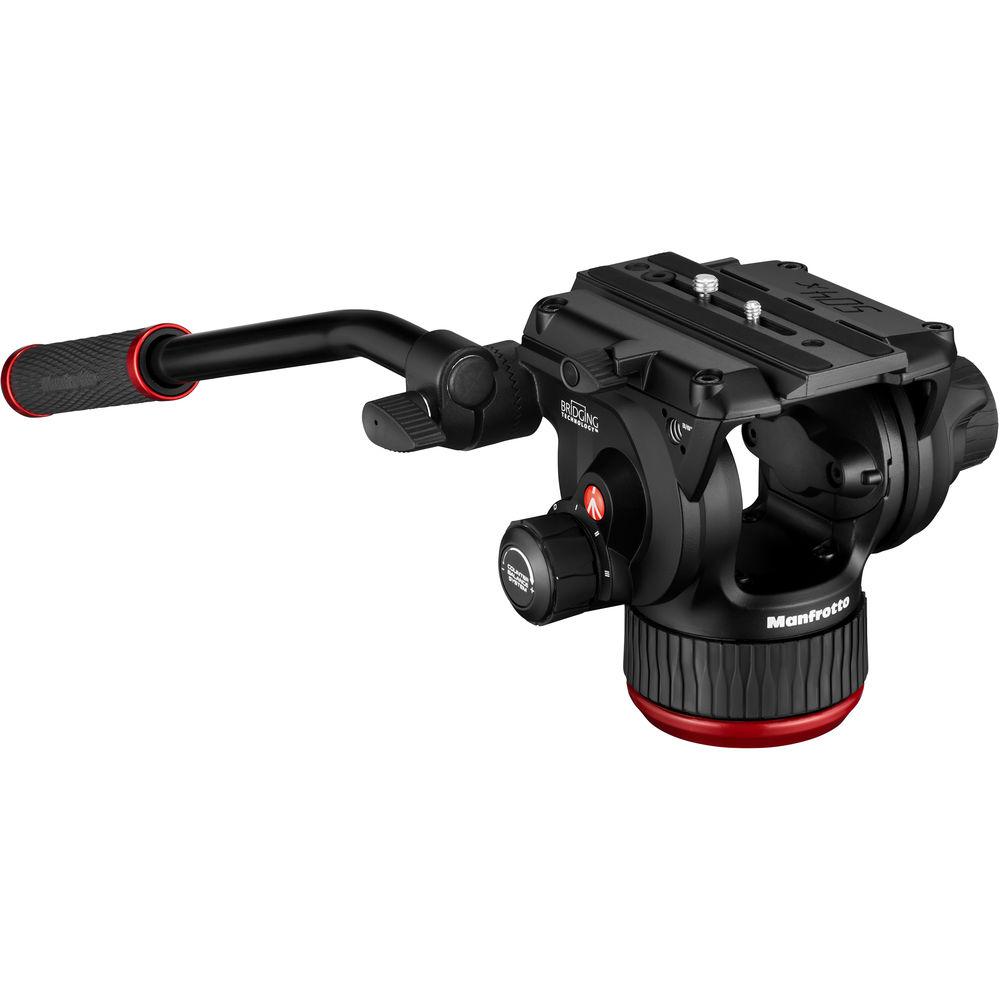

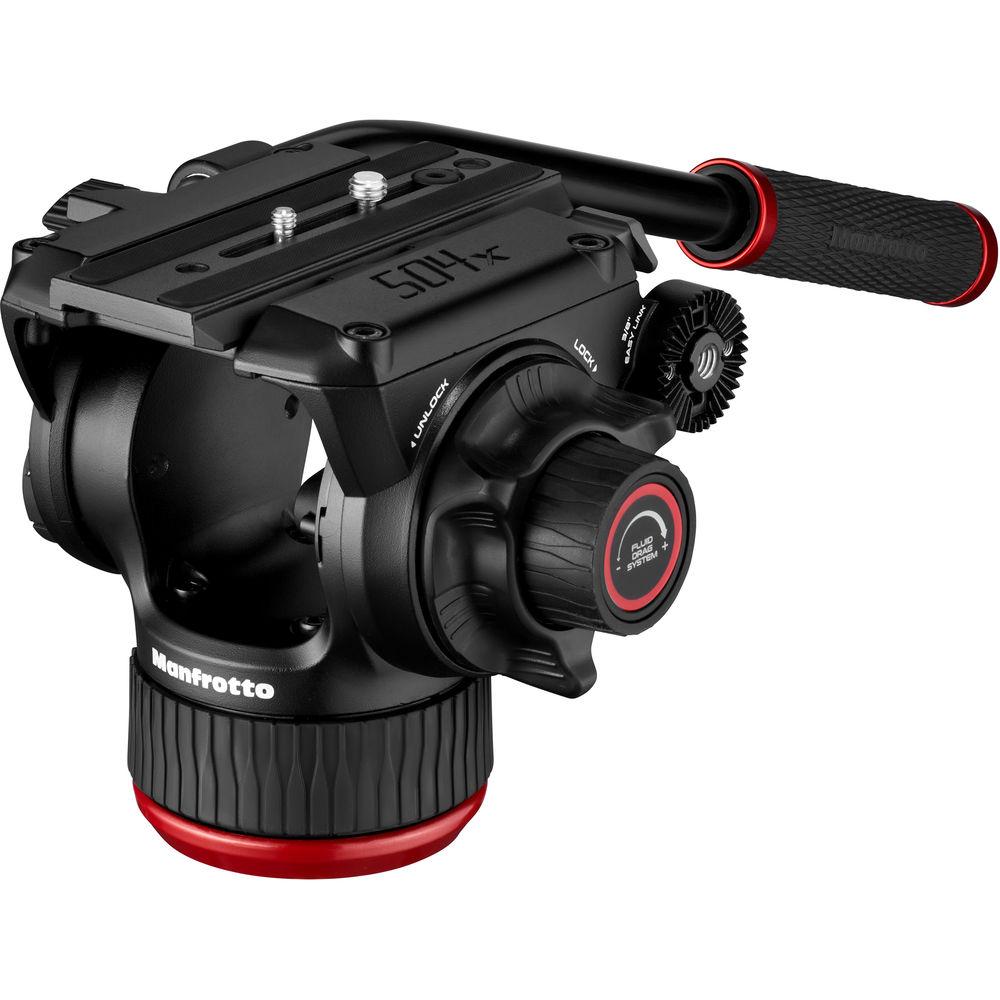

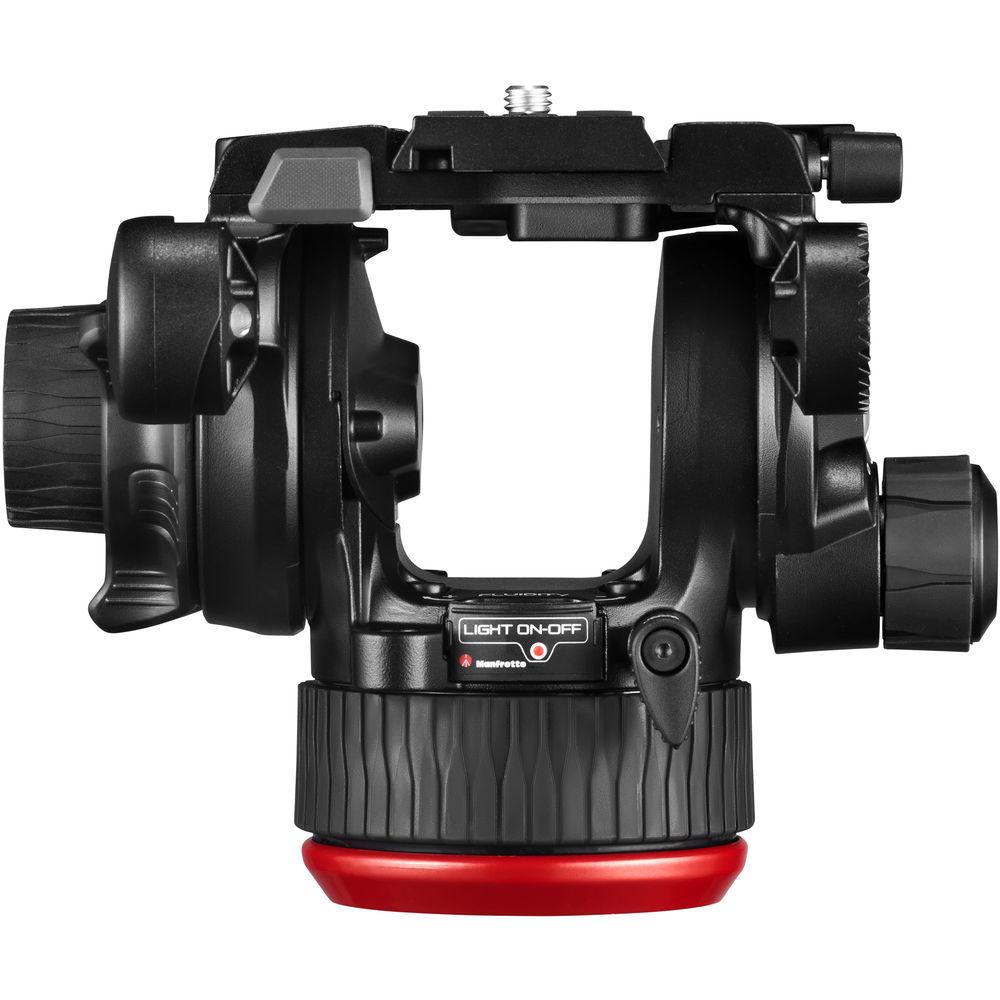

The head has a maximum load capacity of 26.5 pounds, a pan bar, a quick release plate, a counterbalance system with four presets, and an open bridge design that lowers weight and offers a stable, smooth performance. Its flat base and 3/8"-16 female mounting thread make it compatible with a variety of setups, including tripods, monopods, sliders, jibs, and dollies.
The twin-leg carbon fiber tripod has a mid-level spreader, a 75/100mm ball head mount, and a maximum load capacity of 44.1 lbs. The leveling ball that comes with the 504X head is used to attach it to the MVTTWINMC tripod. The entire system comes with a carry bag that may be used to store and move it.
Specification :
Manfrotto 504X Fluid Video Head With Flat Base Specs

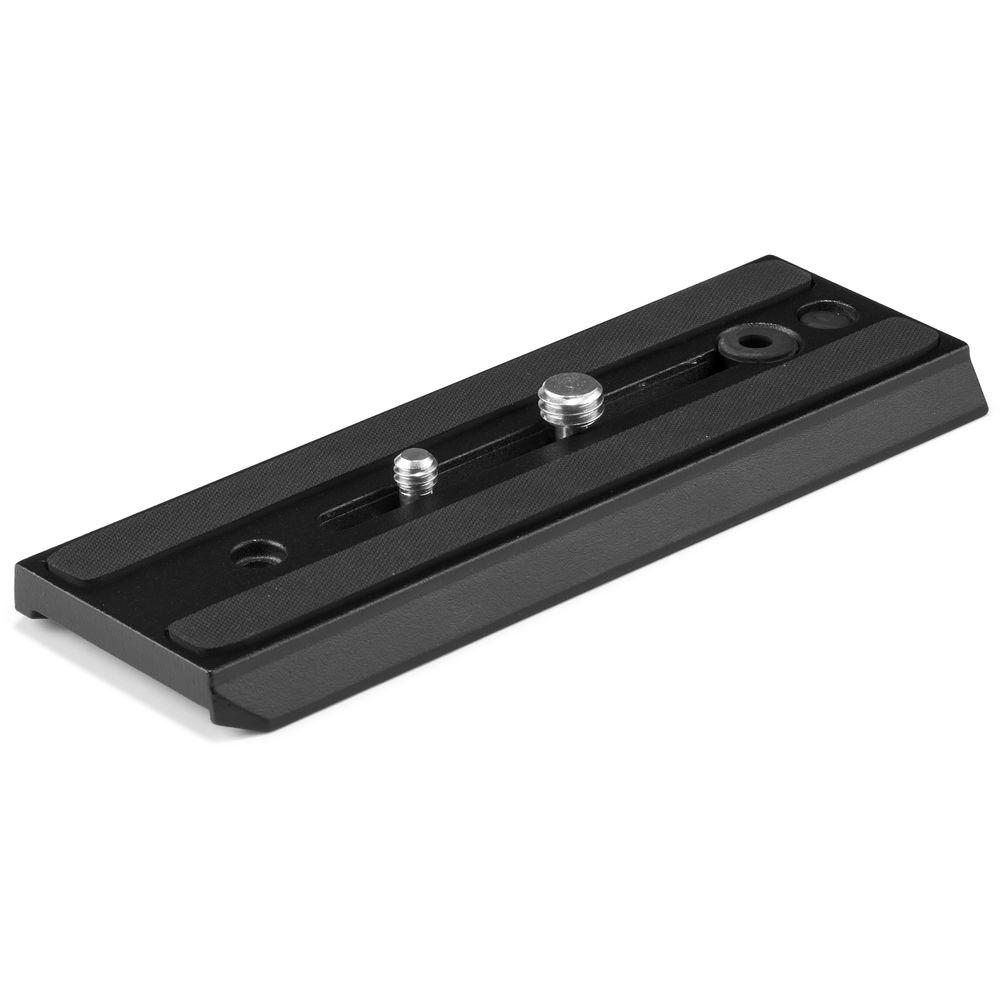

Camera Plate

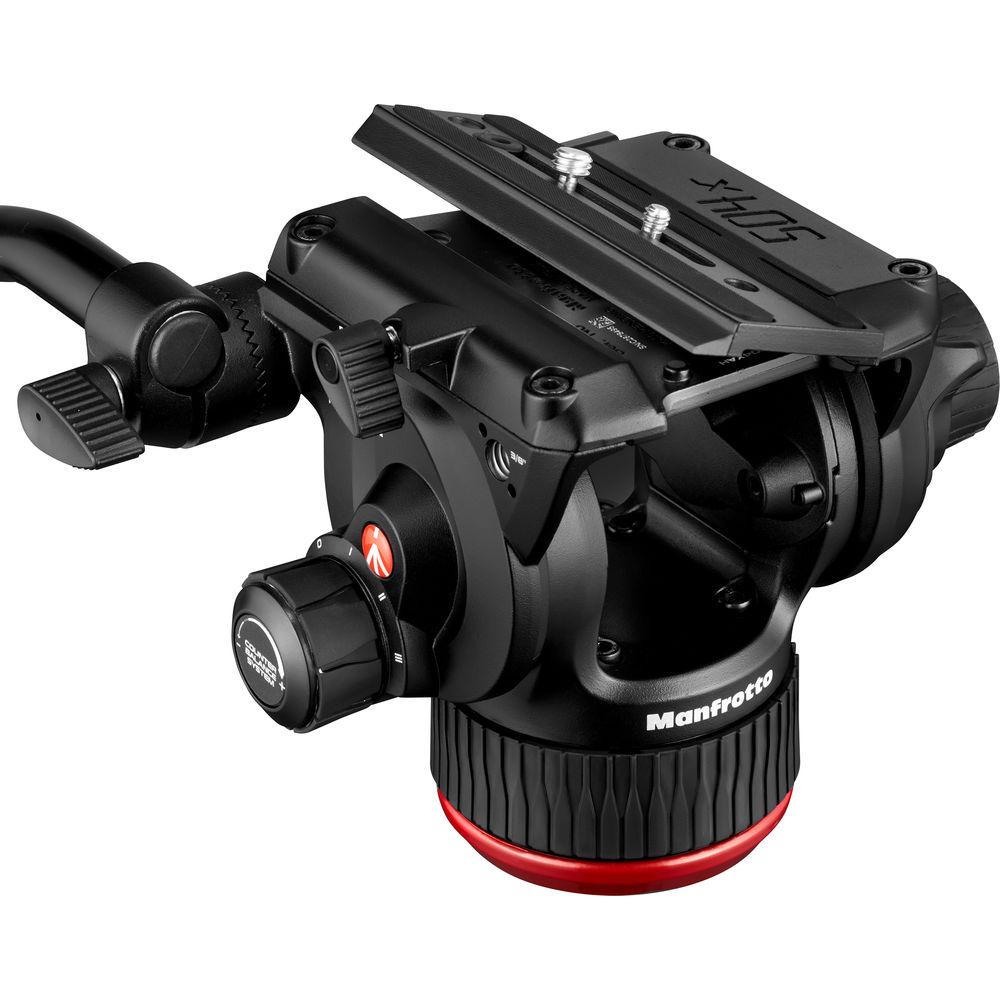

Camera Plate Features : Quick Release, Sliding Balance Plate
Camera Plate Type : 504PLONG
Camera Mounting Screw : 1 x 1/4"-20 Male
1 x 3/8"-16 Male
Head
Base Mount : 3/8"-16 Female

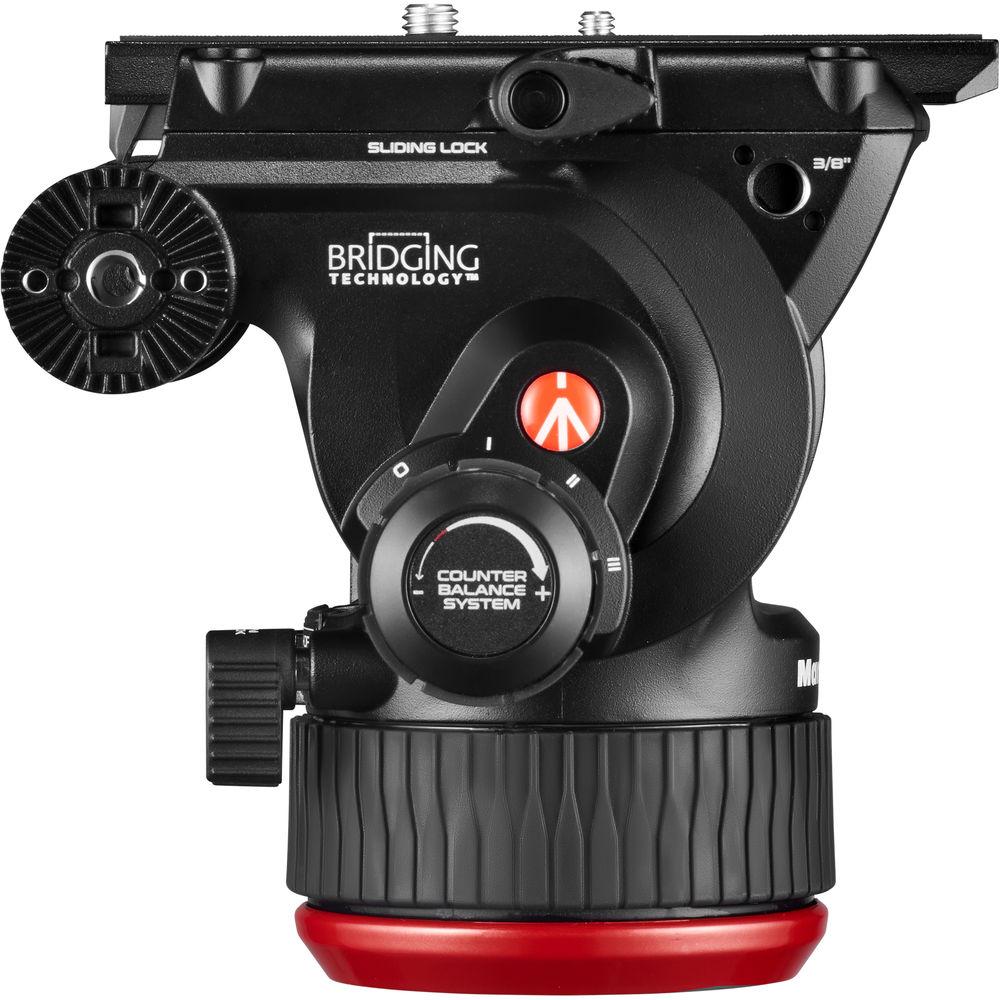

Counter Balance : Incremental 4-Step Plus 0 (0 to 14.3 lb / )

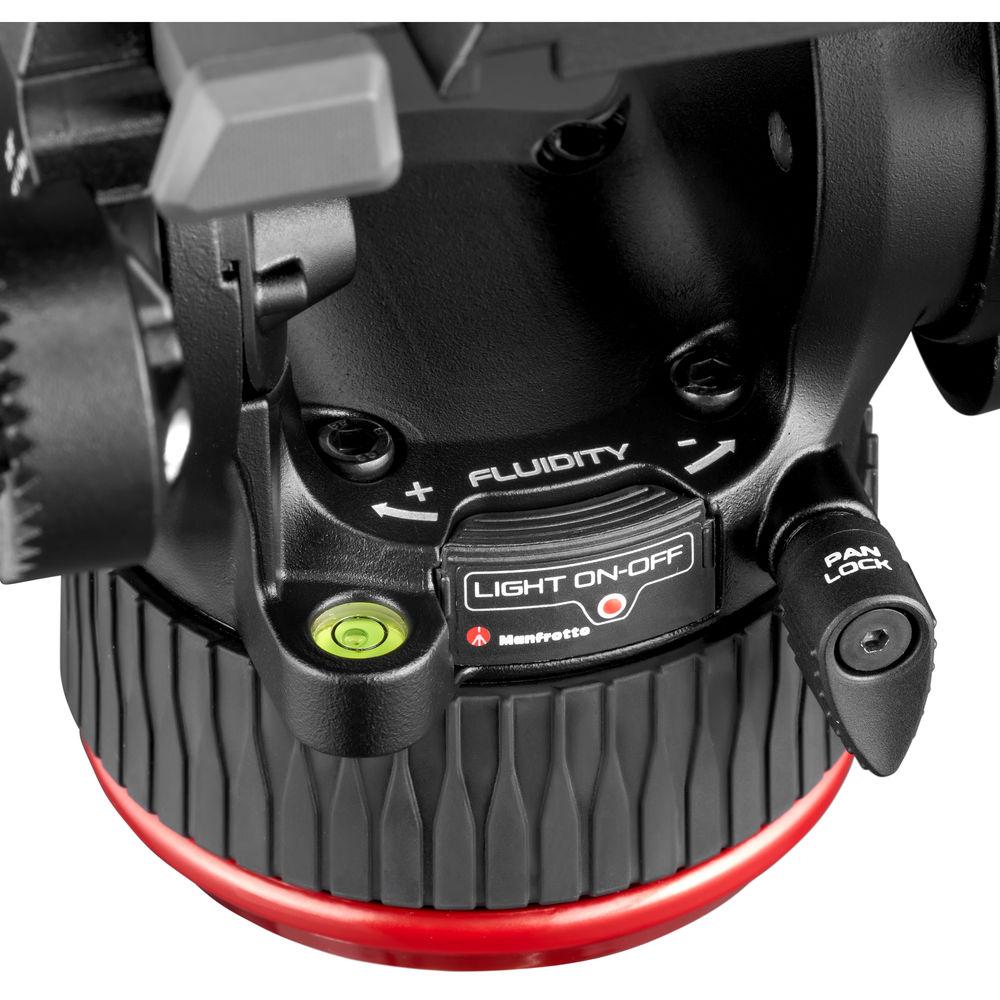

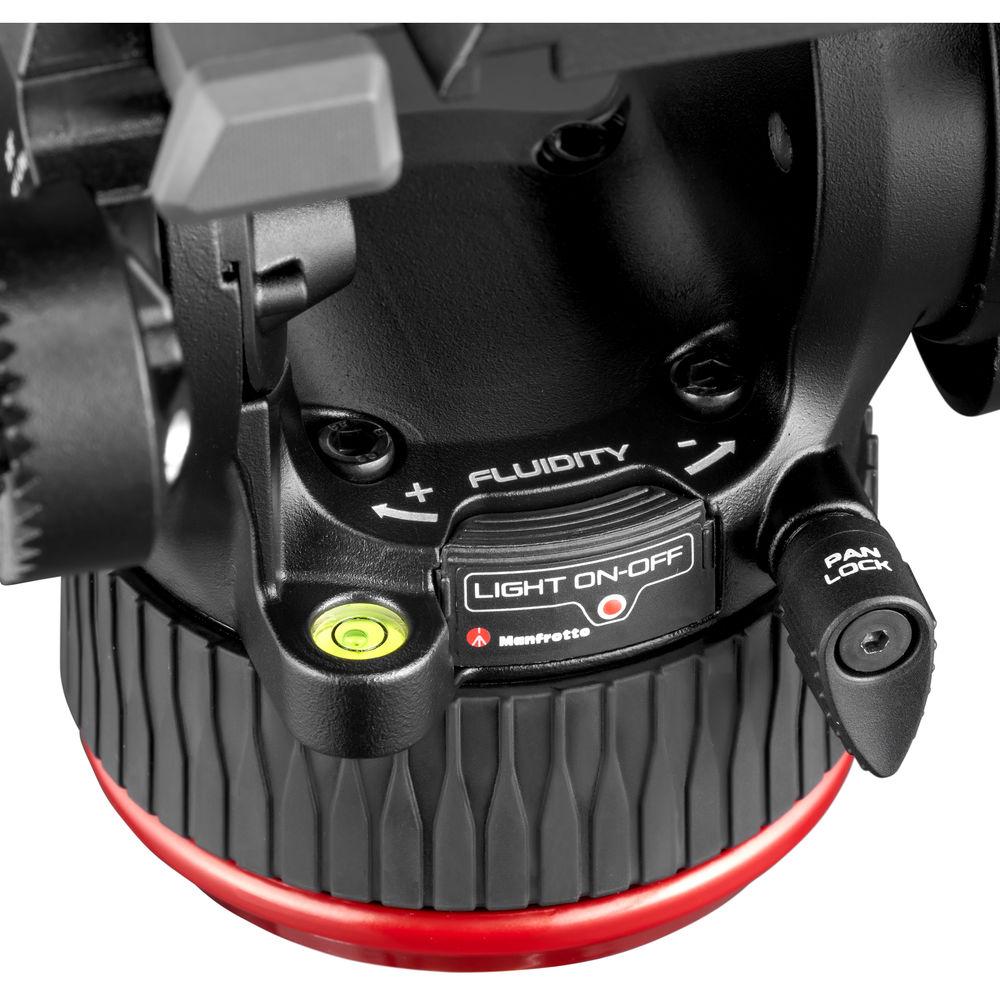

Bubble Level : 1
Pan & Tilt

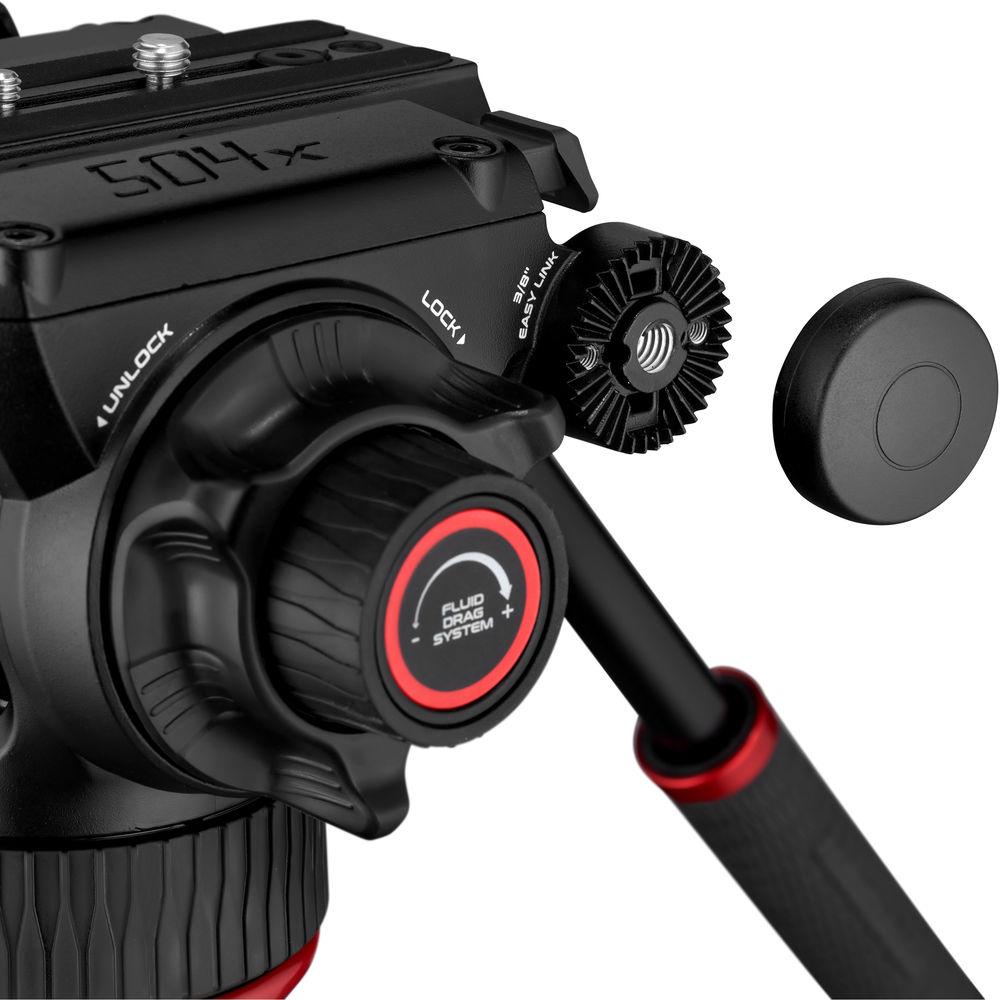

Drag Control : Tilt: Continuous
Pan: Continuous
Drag Type : Fluid
Vertical Tilt : None
Panning Range : 360°
Independent Pan Lock : Yes
Independent Tilt Lock : Yes
General
Load Capacity : 26.46 lb / 12 kg
Weight : 4.41 lb / 2 kg

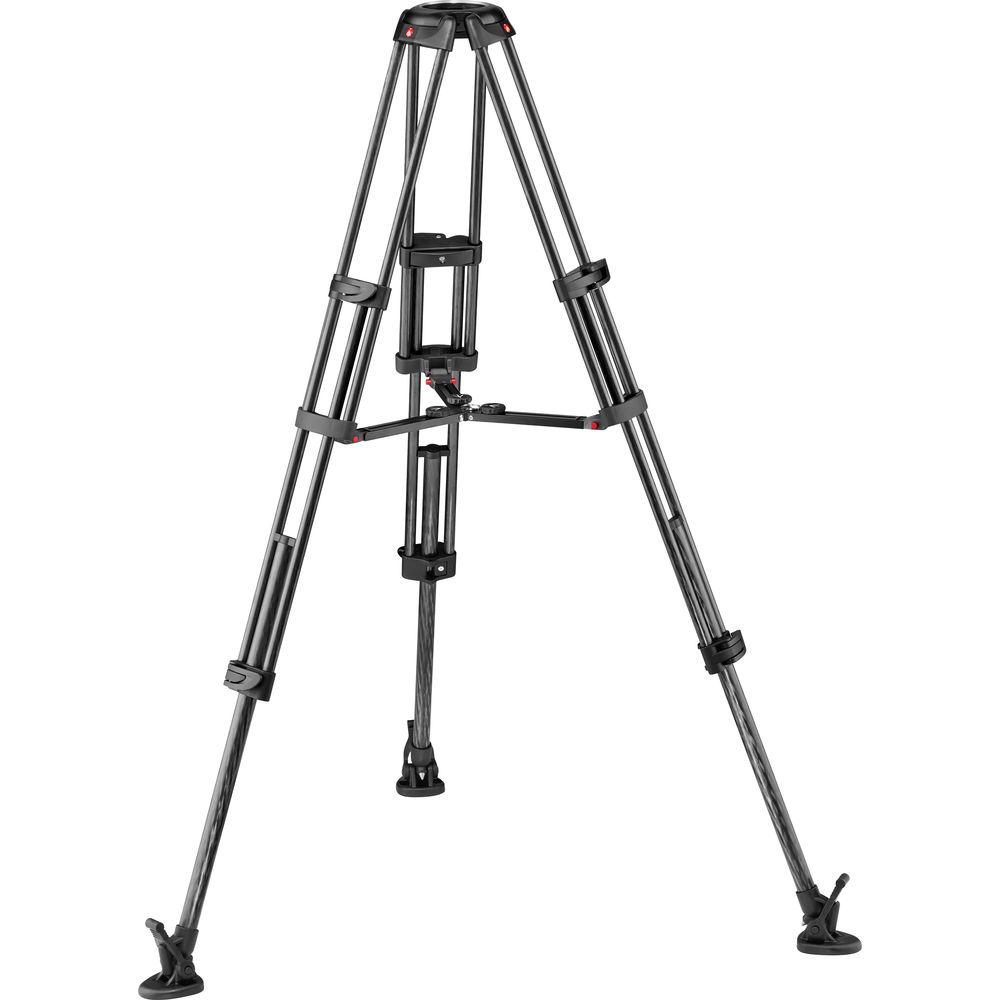

Manfrotto Carbon Fiber Twin Leg Video Tripod Legs With Mid-Level Spreader (100/75mm Bowl) Specs
General
Head Mount Type : 100 mm Bowl
Maximum Working Height : 60.24" / 153 cm (with Spreader)
Minimum Working Height : 23.03" / 58.5 cm (with Spreader)
Closed Length : 27.2" / 69 cm
Materials : Carbon Fiber
Weight : 6.61 lb / 3 kg
Legs
Leg Lock Type : Lever Lock
Leg Positions : Continuously Adjustable
Independent Leg Spread : Yes
Leg Sections 3
Feet Features : Dual Spiked
Spreader : Mid-Level (Included)
