Nissin Air System Transmission

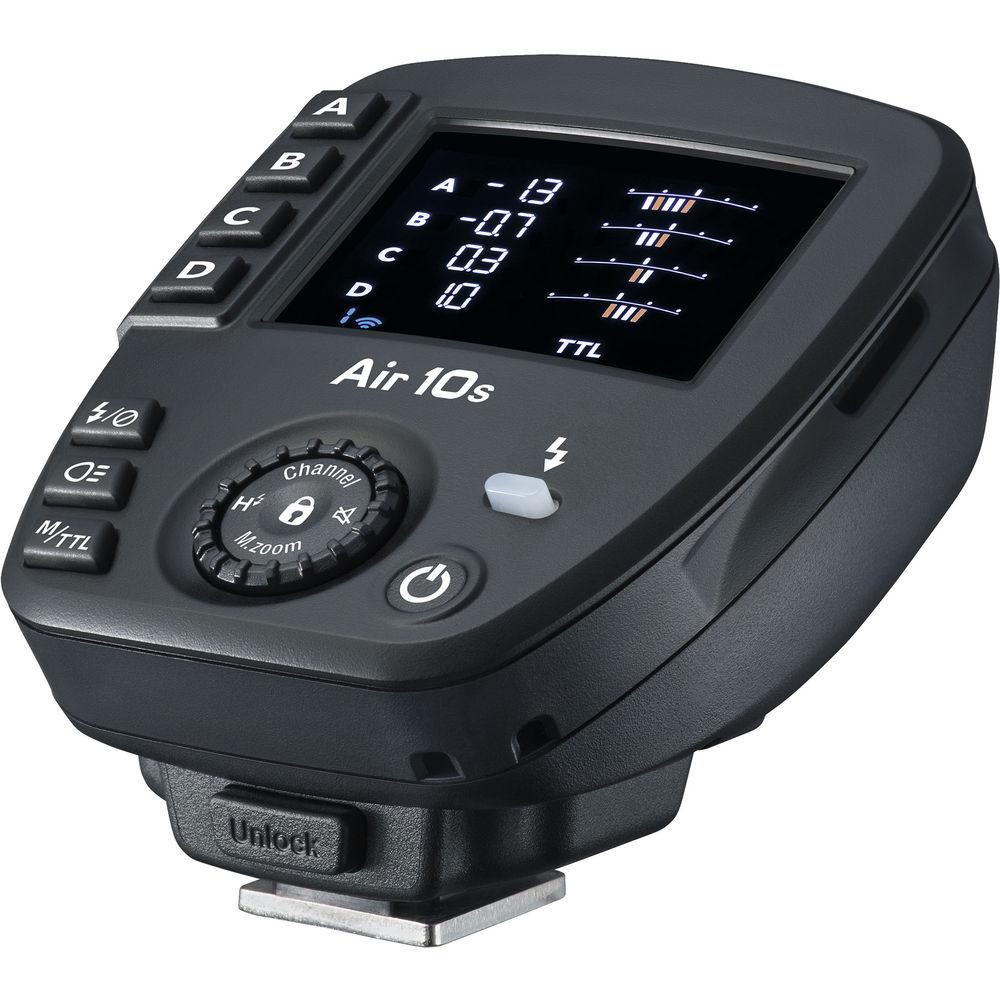

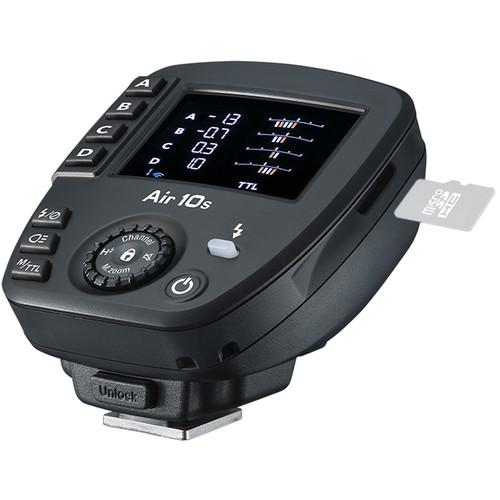

The Nissin Air10s system features a simple and clear dial layout with a color LCD display. This allows the user to seamlessly and quickly control a large group of flashes from a dark indoor studio to a bright outdoor environment. It can wirelessly control the NAS-Ready flashes (i60A and Di700A) and the Air R receiver from as far away as 109 yards regardless of obstacle limitations. The Air10s, which weighs only 2.5 oz. (without batteries) has been equipped with a Micro SD card slot that makes it easy to update the device. Nissin plans on putting a Micro SD card slot on all future flashes and commanders.
Pair and Control
A "TTL Memory Function" memorizes the exposure during a TTL Mode shoot, allowing for a one-touch switch to manual mode. You can save time during the strobe's set-up as the device takes the TTL exposure data, calculates the individual output internally and transforms the exposure data into manual mode for advance adjustment.
Flexible Combinations
Nissin's Open Mode allows for multiple Air10s units to pair with the same group of flashes, eliminating the need to re-pair devices. Even if cameras are changed, the same settings can be used as the shoot continues. This convenient functionality allows multiple cameras and commanders to share a common group of NAS flashes.
Crossover control means you enjoy full control of different versions of NAS strobes. Even if your Air10s has a Sony mount, it is possible to pair it with Canon, Nikon and other differing versions of NAS flashes (i60A, Di700A).

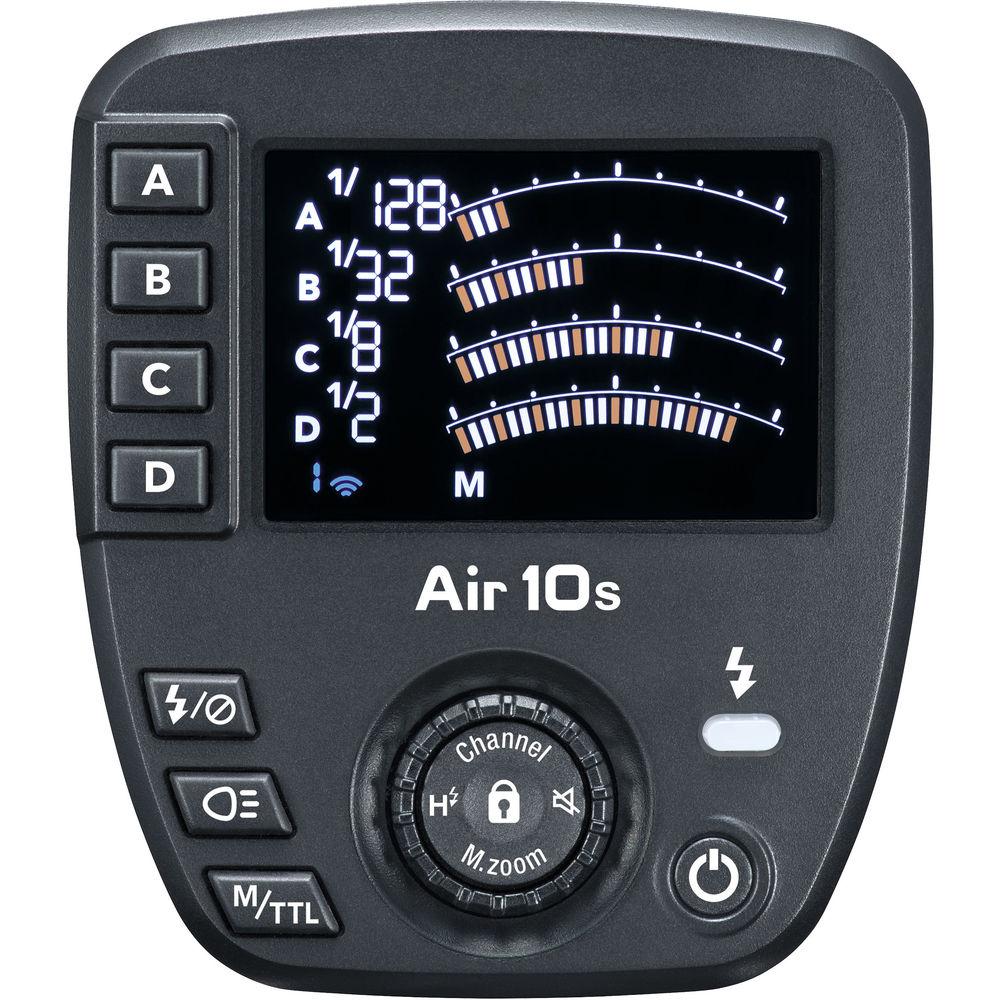

Selector Dial and Color LCD Display
The combination of color LCD display and selector dial provides the user with an extremely convenient way to take full control of the flashes paired within the NAS system, even in brightly lit situations.
Focus Assist Light
The focus assist light provides an additional source of light to assist the autofocus in low-light situations.

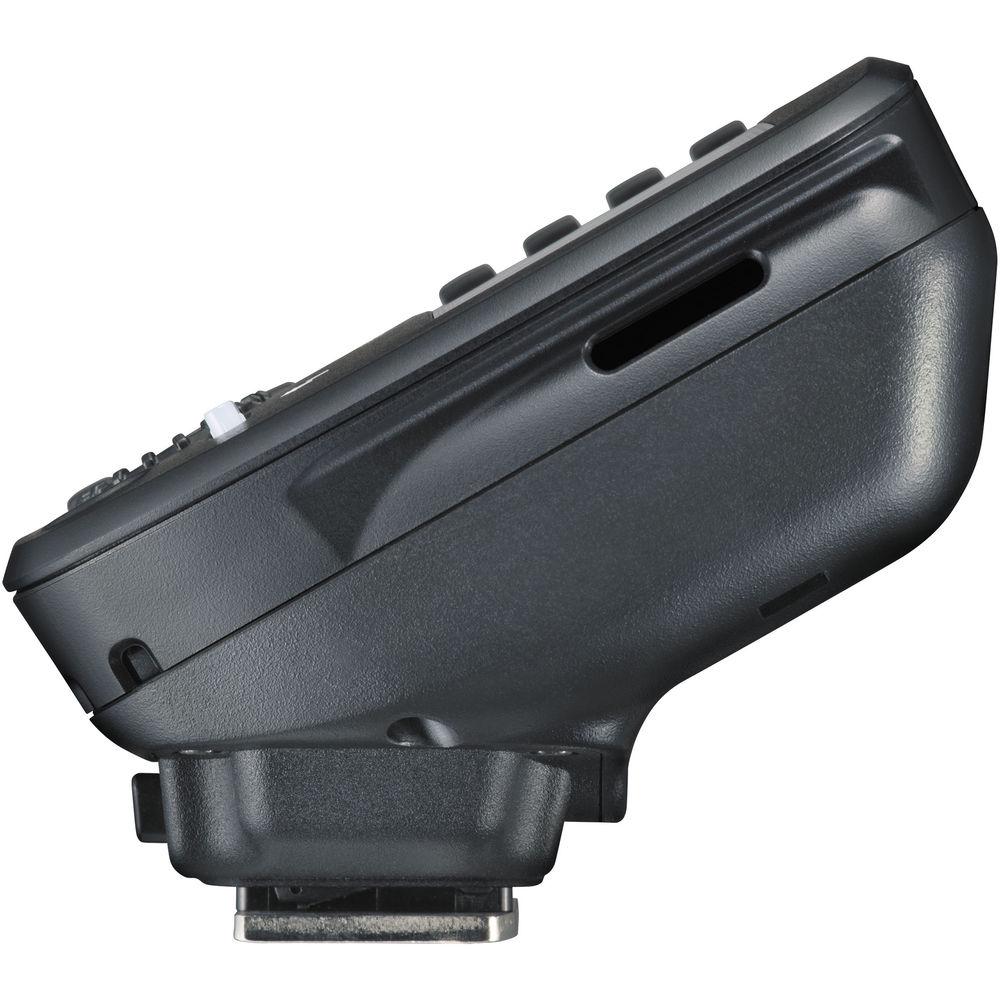

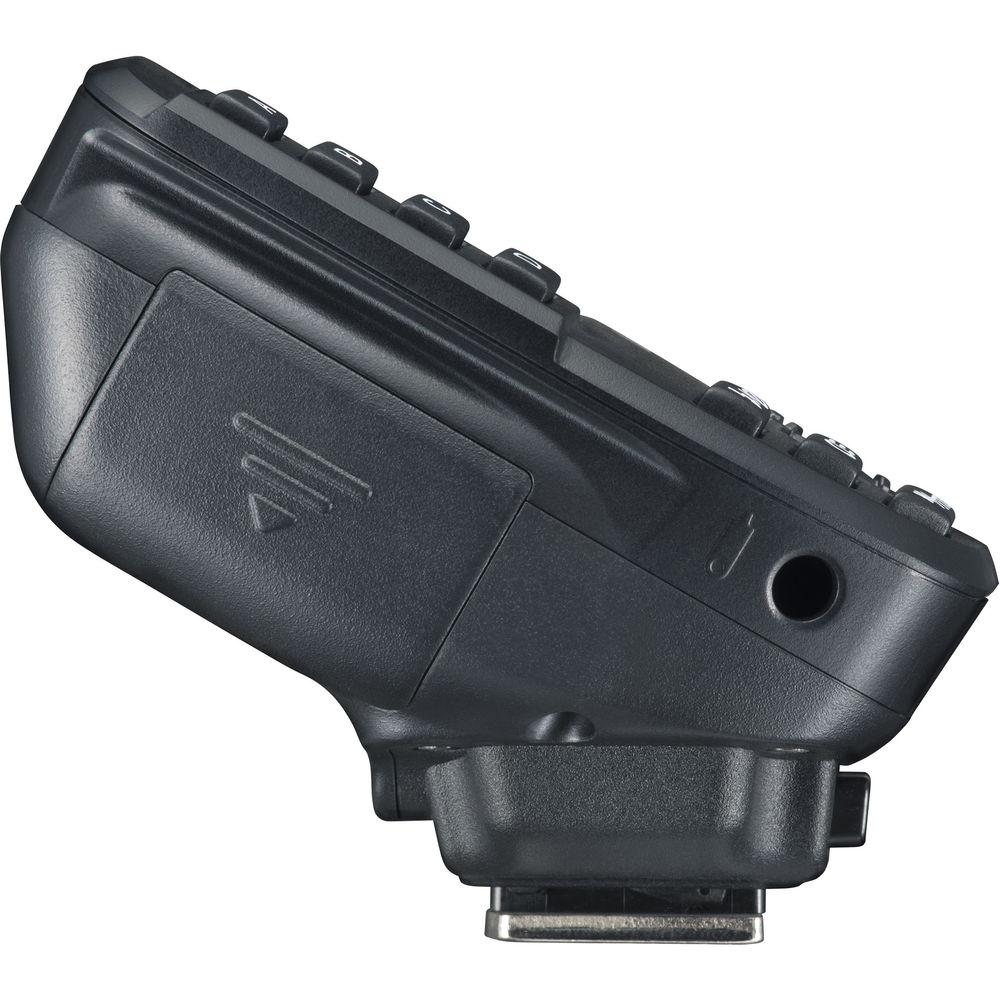

Metal Hotshoe And Quick Release Button
The Air10s Commander has a durable metal hotshoe and features a quick release button. It is easy to attach to your camera and reduces the risk of damage caused by frequent or quick installation.
High-speed Synchronization
Supports up to 1/8000 second shutter speeds.
• For Canon, Nikon, Sony, Fujifilm & Four Thirds camera systems
• Manual zoom from 24 - 200 mm (35 mm CCD format)
• Color LCD display with dial control
• TTL compensation at 1/3EV steps
• 8 channels / 8 groups
• Radio transmission range up to 109 yards
• High-speed sync up to 1/8000 sec.
• Built-in AF assist light
• Micro SD slot for firmware upgrades
• Metal hotshoe and quick release button
• Operates with only two AAA batteries (not included)
CompatibilityNikon CamerasWireless SystemRadio CategoryRadio Specifications2.4 GHz ISM bandChannels8 channels (channel setting on Air 10s)Flash GroupsA. B, C, D & A, B, C, D (8 groups) (Group control and a specific group can be set to stop transmitting)Power Source2x AAA batteriesBatteries LifeApprox. 3.000 shootings (with Alkaline batteries)Guide No. ModeNot applicableFunction ModeTTL, Manual and Manual zoomModeTTL, Manual and Manual Zoom
EV compensation on flash:
[TTL] +/-2.0 EV in 1/3 EV steps (manual)
i-TTL (Nikon) / E-TTL II (Canon)
TTL (Fujifilm)
TTL (Micro Four-Thirds)
[Manual] ADI / PTTL (Sony)
Each group can be adjusted
Independently or synchronized
Manual output:
1/256 to 1/1 with 1/3 EV steps
Manual zoom:
Manual adjustment
24 / 35 / 50 / 70 / 85 / 105 / 135 / 200 mmContinuous Shooting Speed10 shots/sec.Number of Flashes (NiMH batteries)3.000 approx.Transmission DistanceMax. 109 yardsSynchronization ModesNikon:
1st curtain synch
2nd curtain synch
Rear curtain synch
High-speed synch (HSS)
Slow synch
Red-eye reductionHigh Speed SyncYesAF Assist Light Effective Range25.5 in. ~ 5.5 yds. / 0.7 ~ 5 mModeling LightCan be controlled via the commanderMountingHotshoe, tripod, free standingPC Sync TerminalStandard PC sync cable
Micro SD slot for firmware updatesRemote Shutter Release SocketAvailableDimensions (LxWxH)2.6 x 2.4 x 2.4" (66.04 x 60.96 x 60.96mm)Weight2.5 oz (70.87g)
