Description
Saramonic SR-R1 Belt Pack Recorder with DK3 Lavalier and MicroSD Card
SR-R1 Saramonic
The Saramonic SR-R1 is a tiny belt-pack stereo MicroSD recorder that can capture audio in broadcast quality with a resolution of up to 24-Bit. It has a lockable 3.5mm input for Mic or Line-Level audio in Mono or Stereo and is incredibly small and light. It comes with the premium DK3A lavalier, which records voices at a high quality. It may record line-level output from a mixer, computer, smartphone, or music player, or it can be used in conjunction with a stereo lavalier for two-person recordings. It has a headphone output, supports up to a 128GB MicroSD Card, and can be powered by AAA or USB-C. (8GB card included).
Line-Level or Microphone Input in Mono or Stereo
The SR-R1 tiny belt pack recorder's ability to record mic- or line-level audio in Mono or Stereo and to supply plug-in power to microphones makes it stand out from other recorders. Because of this, the recorder is incredibly adaptable and can capture almost any audio source. For two-person recording, you can use the bundled Saramonic DK3A premium lavalier or connect a mini-shotgun mic, a headset mic, or a stereo lavalier. With its adjustable 5-stage mic volume and 4-stage low-cut filter control (flat, 80, 120, and 160Hz), just about any 3.5mm microphone wired for standard TRS pin-out will operate. You can record the output of mixers, computers, smartphones, music players, or any other line-level device by switching to line-level.
So Little and Light, Yet With So Many Recording Options

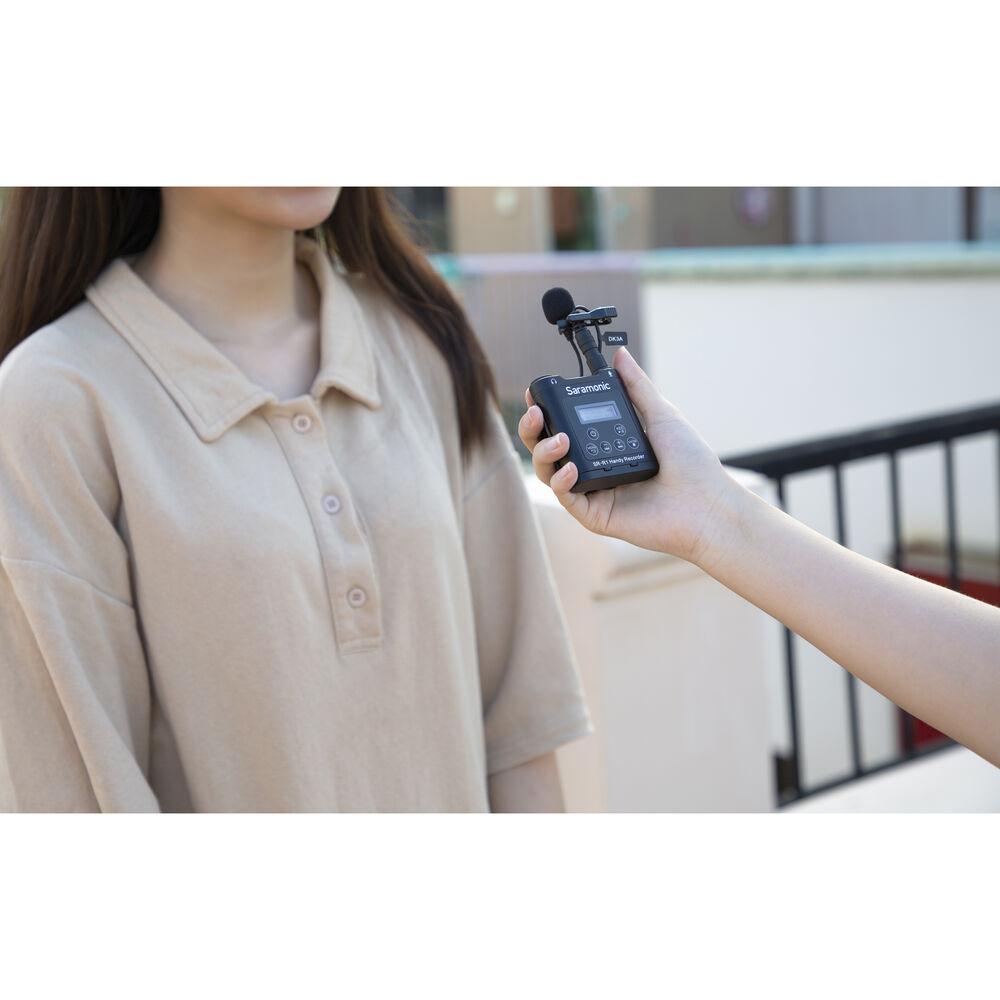

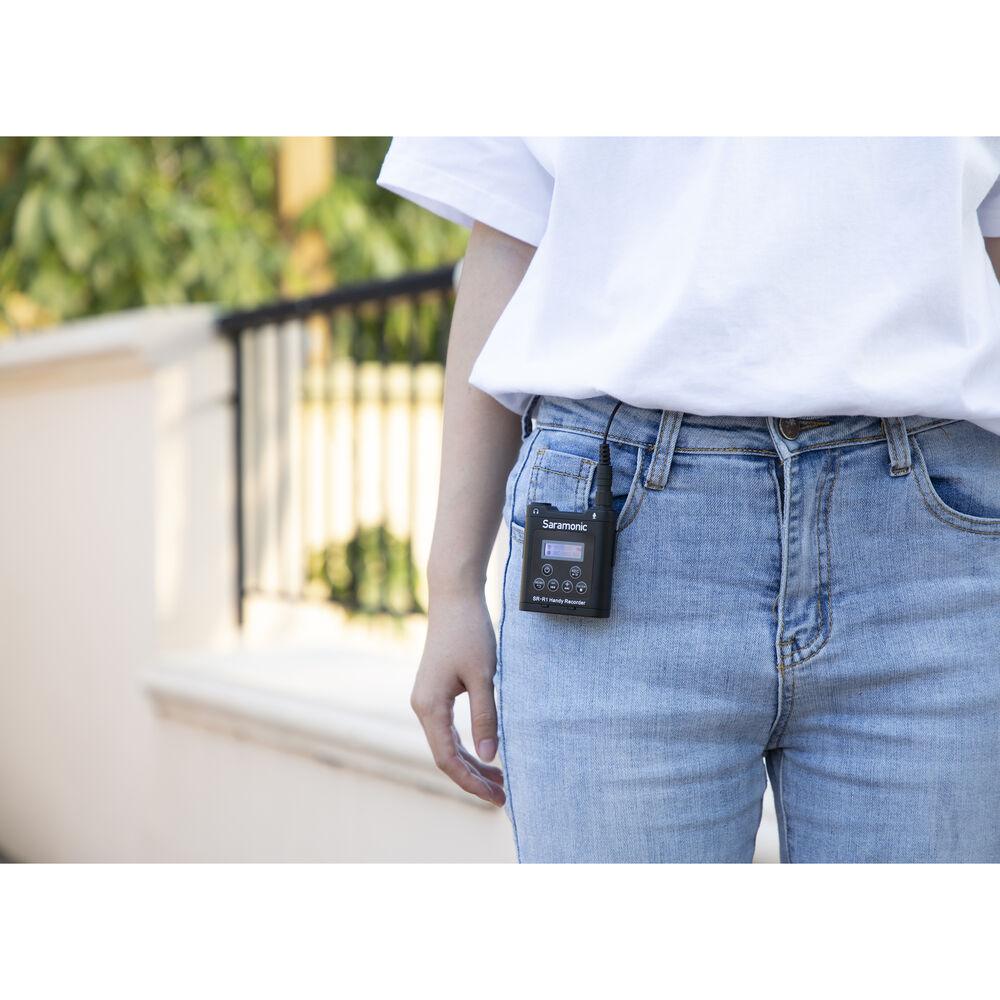

Ideal for capturing speeches, incognito audio, film sound, interviews, weddings, and many other types of events. The DK3A Lavalier that comes with the recorder will provide excellent sound if you just clip the recorder to your subject or drop the recorder where you wish to capture audio. But it goes further than that. For interviews with two people, add a stereo lavalier. To record remotely or to a DJ's mixer at a wedding, connect it to a portable mixer. It can be dropped on a stage with a stereo mic on a stand or attached to a boom pole and connected to a shotgun. Even cameras without microphone inputs can use it by clipping it to a shoe mount.
Intelligent, Sophisticated, and Simple to Use Features

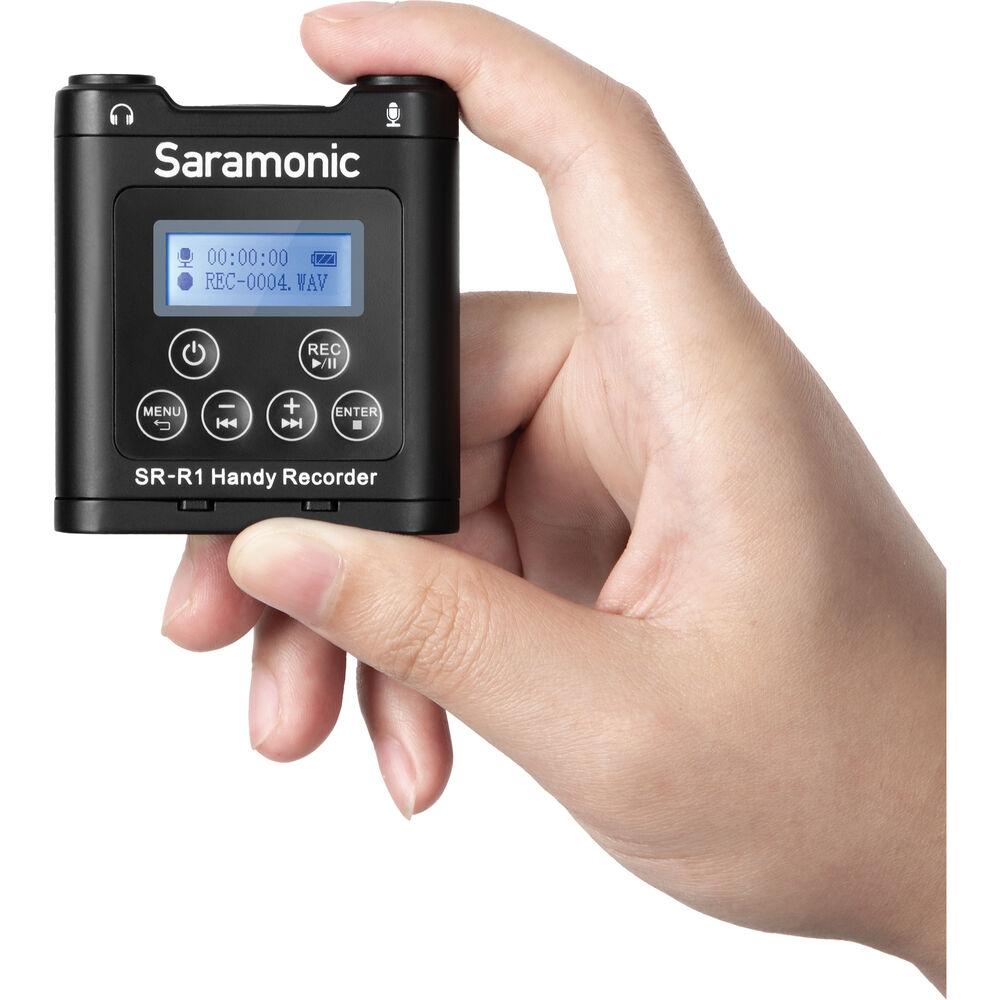

The SR-R1 is an extremely user-friendly recorder that has a tonne of unique and practical features. It has a 3.5mm headphone output with a level control for playback and real-time monitoring. Additionally, it has an LED display with a simple-to-use menu system that makes it possible to rapidly set up and make modifications. Up to 24-bit/44.1kHz recording resolution is configurable. With user-selectable file restrictions of 5, 10, 30, 60, 90, or 120 minutes, it supports MicroSD Cards up to 128GB in size. Additionally, it may be powered by a single AAA battery (5 hours) or by a USB-C power source or battery pack (DC5V).
Premium Lavalier DK3A with Accessory Suite
The DK3A lavalier that is supplied is designed specifically for dialogue; it offers a crisp, full-frequency response and improved vocal intelligibility. Its omnidirectional polar pattern offers 360-degrees of sound pickup and is perfect for recording realistic-sounding speech for a variety of applications, including interviews and speech. It is little (just 4mm in diameter) and disappears when tucked beneath garments, in hair, or on costumes. For a full accessory bundle, there are also 2 alligator-styled mic clips, 1 metal mesh windscreen, 2 foam windscreens, 2 high-wind furry windscreens, and 1 reusable cable tie.
A Marvelous Tiny Recorder
The SR-R1 is the most feature-rich, pocket-sized belt-pack stereo recorder available right now. While recording pristine professional sound, it offers unique capabilities and versatility that significantly set it apart from the competitors. It is the perfect stereo recorder for customers who require a device that is incredibly small, light, dependable, and simple to operate in nearly any situation. Small enough to fit in your pocket, camera bag, or backpack, it's easy to carry everywhere you go and ensures you never lack a versatile audio recording solution.
SR-R1 Saramonic Features
- belt-pack stereo recorder that is incredibly small and light and records audio in broadcast quality up to 24-bit/44.1kHz
- Ideal for recording interviews, film sound, weddings, indiscreet audio, portable mixer outputs, safety tracks, and anywhere else you require a compact stereo recorder.
- With plug-in power for TRS standard microphones, five-stage input level control, and three low-cut filters, locking 3.5mm input records mic or line-level sounds in stereo or mono.

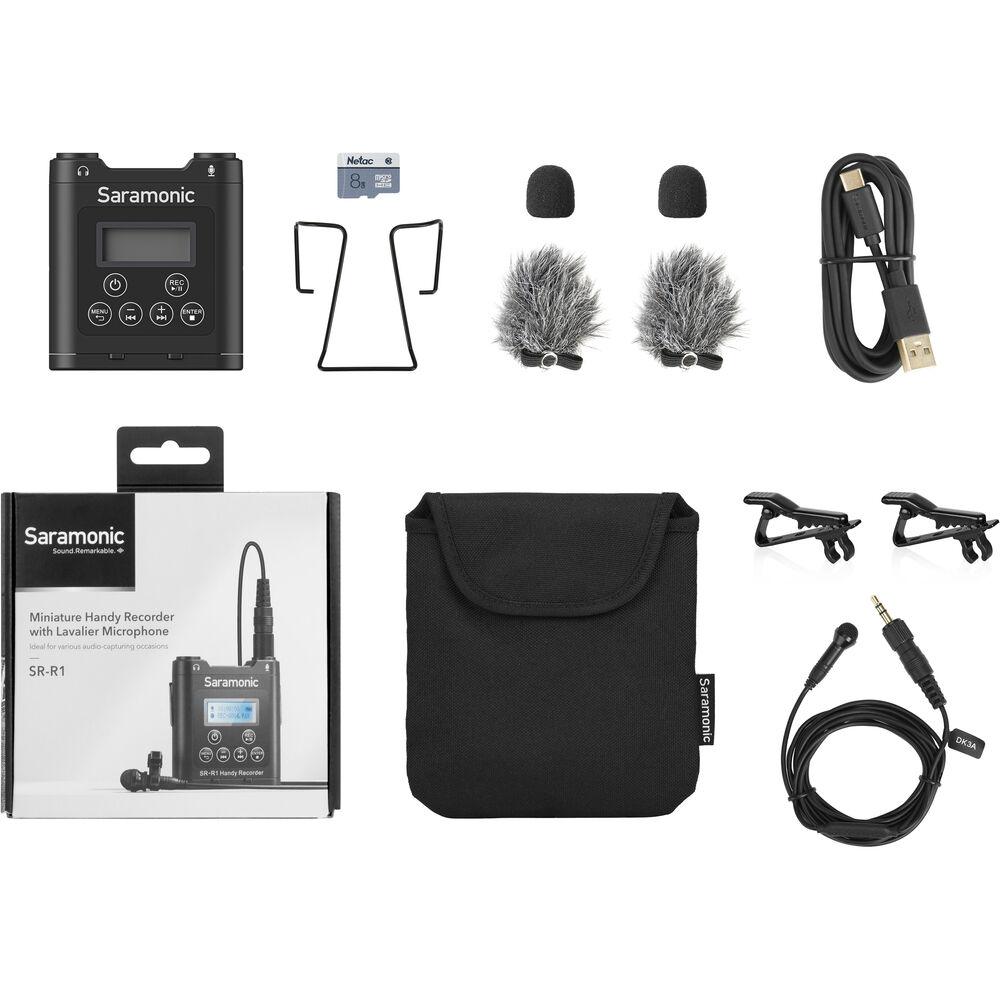

- contains a Saramonic DK3A Lavalier with two mic clips, a reusable cable tie, and windscreens made of metal mesh, foam, and fur.
- Real-time monitoring and playing are possible with the 3.5mm Headphone Output, which is powered by a single AAA battery (5 hours) or USB-C (DC5V), and an 8GB MicroSD Card is supplied (up to 128GB supported)
Specification
SR-R1 Recorder
Recording Channels : 2 (Mono or Stereo)
Recording Formats : .wav 24-Bit: 48kHz, 44.1kHz & 32kHz / 16-Bit: 48kHz, 44.1kHz & 32kHz
Playback Formats : .wav 24-Bit: 48kHz, 44.1kHz & 32kHz / 16-Bit: 48kHz, 44.1kHz & 32kHz
A/D Conversion : 24-bit, 128x oversampling
D/A Conversion : 24-bit, 128x oversampling
Signal Processing : 32-bit
Signal Processing : 32-bit
Recording Media : MicroSD Card (up to 128GB)
LCD 128 x32 Pixels
Gain Level : 36dB
Input Level : 0 to -36dBm
Output Impedance : 2k Ohm
Audio Input Connector : 3.5mm Locking-Type Mic/Line Combo
Headphone / Line output : 3.5mm Locking-Type
Output Load : -10dBm
Headphone Output Level : 20mW+20mW into 32 Ohm load
Power Requirement : 1x AAA Battery or DC 5V USB-C power
External Power Connector : USB-C
AAA Battery Run-Time : 5-hours
Battery Info : Required, Not Included
Battery Material : Alkaline
Battery Type : AAA
Battery Quantity : 1
Dimensions : 2.28 x 0.7 x 2.6" (58 x 17.8 x 65mm)
Weight : 2.3 oz (65.6g)
DK3A Lavalier
Acoustic Principle : Electret Condenser
Polar Pattern : Omnidirectional
Sensitivity : -40 +/-2dB (1kHz 0dB=1V/Pa)
Frequency Range : 20Hz to 18kHz
Signal-to-Noise Ratio : More than 58dB
Operating Temperature : -4 Degree F - 140 Degree F (-20 Degree C - 60 Degree C)
Connector : Gold-Plated Locking 3.5mm
Cable Length : 70.87" (180cm)TOP
