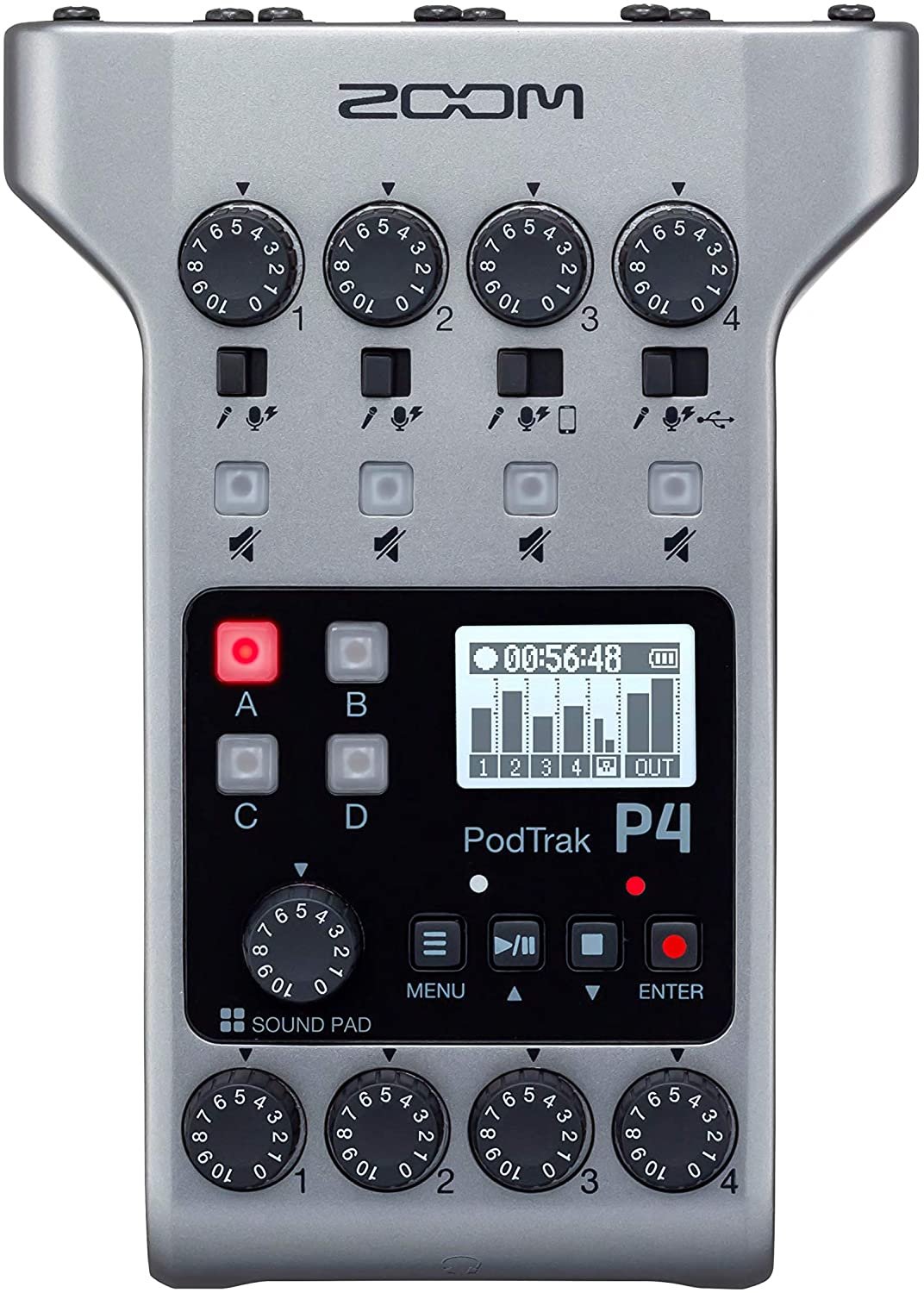

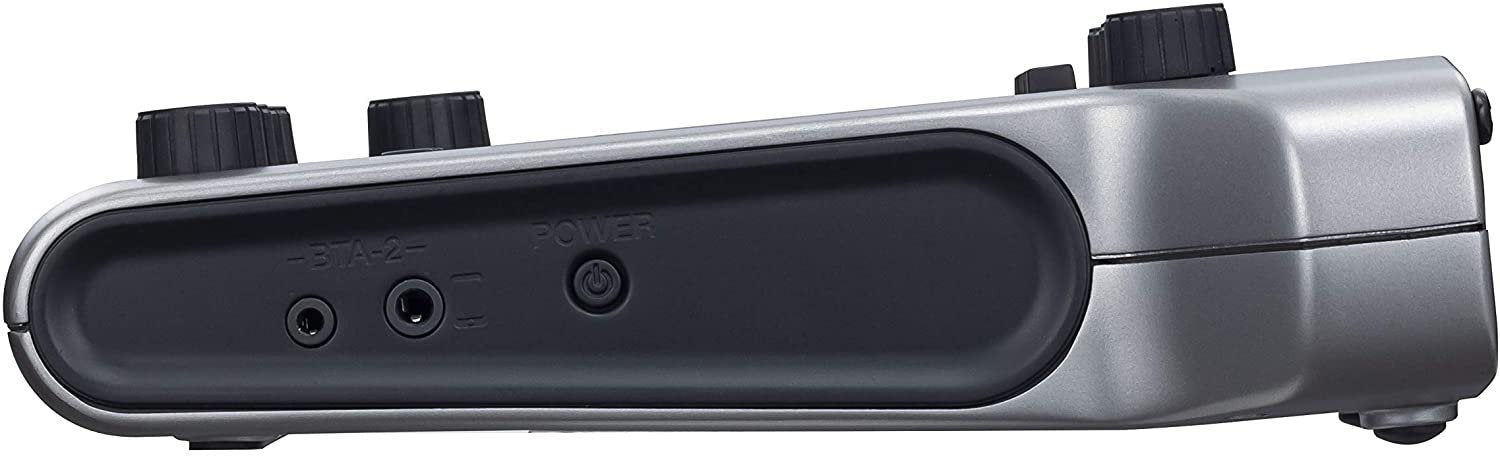

Zoom PodTrak P4 Portable Multitrack Podcast Recorder
Roll over image to zoom in Click on image to zoom
Zoom PodTrak P4 Portable Multitrack Podcast RecorderZoom PodTrak P4 Portable Multitrack Podcast Recorder

Zoom PodTrak P4 Portable Multitrack Podcast Recorder

UPC: 884354023522 MPN: P4 SKU: 884354023522
Price:
$149.99

In stock

 More payment options

Arlington Store

Pickup currently unavailable

Burke Store

Pickup available, usually ready in 2 hours

DC Store

Pickup currently unavailable

What's Included

  • Zoom PodTrak P4 Portable Multitrack Podcast Recorder

Reviews
Specifications

GENERAL
BrandZoom
TypePortable Recorder
Features
  • Four mic inputs with XLR connectors
  • Four headphone outputs with individual volume control
  • Gain control knobs and mute buttons for each input
  • Phantom power for all XLR inputs
  • Automatically prevent feedback from call audio using the Mix-Minus function
  • Easily connect your phone using the TRRS connection
  • Trigger sound effects using four assignable Sound Pads with 11preset sounds
  • All input sources can be recorded on separate tracks
  • 16-bit /44.1kHz audio WAV
  • Records directly to SD, SDHC and SDXC cards up to 512 GB
  • 2-input, 2-output USB audio interface
  • Class-compliant mode for iOS compatibility
  • Up to 3 hours of use with just two AA batteries or a USB power supply

Description

  • Four mic inputs with XLR connectors
  • Four headphone outputs with individual volume control
  • Gain control knobs and mute buttons for each input
  • Phantom power for all XLR inputs
  • Automatically prevent feedback from call audio using the Mix-Minus function
  • Easily connect your phone using the TRRS connection
  • Trigger sound effects using four assignable Sound Pads with 11preset sounds
  • All input sources can be recorded on separate tracks
  • 16-bit /44.1kHz audio WAV
  • Records directly to SD, SDHC and SDXC cards up to 512 GB
  • 2-input, 2-output USB audio interface
  • Class-compliant mode for iOS compatibility
  • Up to 3 hours of use with just two AA batteries or a USB power supply
Specifications:

INPUTS & OUTPUTS
  • NUMBER OF INPUT CHANNELS: 4 (mono/stereo)
  • NUMBER OF OUTPUT CHANNELS: 1 (headphone x 4)
CONNECTORS
  • MIC XLR jacks (2: HOT)
  • SMARTPHONE CONNECTION JACK: TRRS mini jack (4 contacts, TIP: L, RING1: R,RING2: GND, SLEEVE: MIC)
  • USB USB Type-C (audio interface and mass storage functions) [Note: Use a USB cable that supports data transfer. USB bus power is supported.]
  • DC 5 V: USB Type-C (for power supply)
  • HEADPHONES: 3.5 mm stereo mini
PHANTOM POWER
  • PHANTOM POWER: +48 V
RECORDER
  • RECORDER:
    • Formats: WAV 44.1 kHz, 16-bit, mono/stereo
    • Recording media: 4 GB−32 GB SDHC-compliant cards (Class 10 or higher);
    • 64 GB−512 GB SDXC-compliant cards (Class 10 or higher)
AUDIO INTERFACE
  • AUDIO INTERFACE: 44.1 kHz, 16-bit, 2-in/2-out
POWER
  • POWER:
    • 2 AA batteries (alkaline, NiMH or lithium) [We recommend using NiMH]
    • AC adapter (ZOOM AD-17): DC 5 V/1 A (USB bus power is supported.)
  • EST. CONTINUOUS OPERATION TIME USING BATTERIES
    • ​Recording 44.1 kHz/16-bit/4ch audio to SD card (when 48 V is OFF and headphone impedance is 63 Ω)
    • Alkaline batteries: about 3 hours
    • NiMH batteries (1900 mAh): about 3.5 hours
    • Lithium batteries: about 8 hours
      • The above values are approximate.
      • Continuous battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions.
MISC.
  • EXTERNAL DIMENSIONS: 112 mm (W) x 155 mm (D) x 47 mm (H)
  • WEIGHT (UNIT ONLY): 290 g
